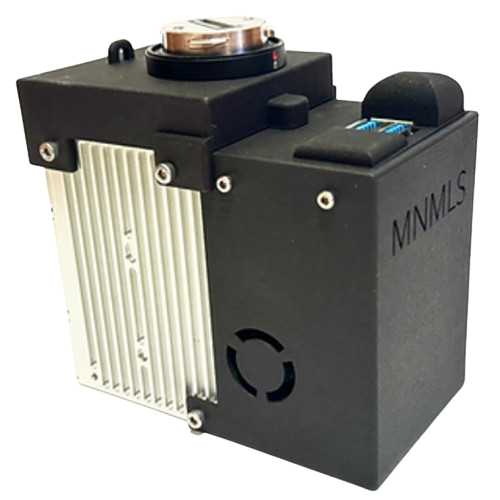

MNM Drone LiDAR

The MNM LiDAR System is the lowest cost and lightest weight drone LiDAR on the market.  There are no hidden fees, just a solid setup at groundbreaking price.

The MNM utilizes one of the most popular LiDAR sensors on the market the Livox Avia.  The same sensor as the DJI Zenmuse L1, Rock Robotic R2A, the RSESPI Livox Avia, and others.

The integrated RTK GNSS receiver is a multiband receiver, resulting in reliable GNSS PPK processing with any base, including the Emlid Reach RS2+ and the Emlid Reach RS3.  Any multiband base capable of storing a RINEX file is compatible with the MNM LiDAR.

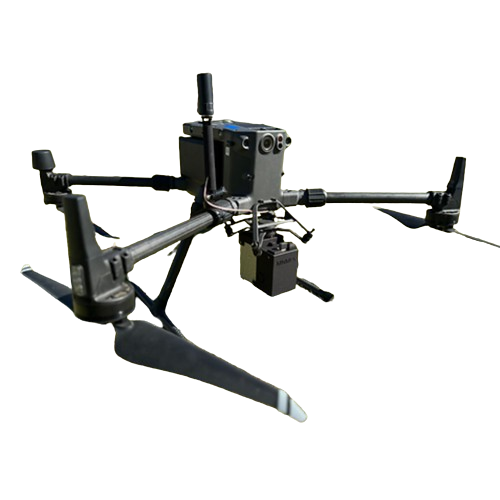

The MNM LiDAR does not have a side-by-side camera.  The point cloud won’t be colorized.  The advantage of this is that it is the lightest weight drone LiDAR at 715g.  The MNM can be mounted on the DJI Matrice M200, M210, M300 and M350, as well as non-DJI drones capable of supplying power to the skyport.  Custom mounts are available.

The IMU accuracy comes in at 0.04 for roll/pitch and 0.13 for heading.  This comes in close to the Zenmuse L1 accuracy at 0.025 and 0.15.

The MNM has similar hardware to the L1, with the very same LiDAR sensor, and similar RTK receiver and IMU.

The MNM includes a perpetual license (software upgrades included) to process the LiDAR data.  This includes a level arm and boresight tool, and PPK trajectory.  Import the MNM data and RINEX file from your base, and MNM LiDAR Processor with take it to a point cloud in LAZ format.  From there you can bring it into any point cloud tool, such as BricsCAD, to generate a deliverable.

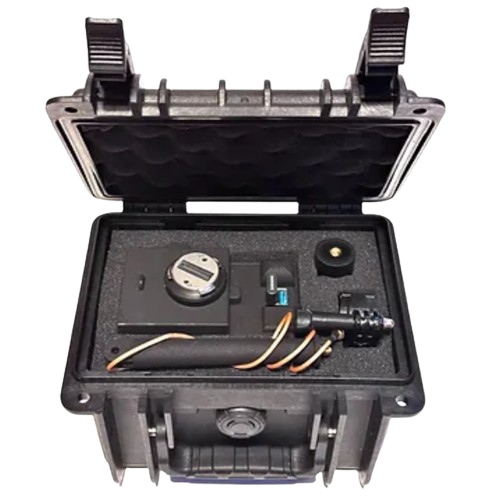

In the box:

• MNM LiDAR System
• Hard Case
• Perpetual processing software with BayesMap Strip Align
• User Manual

MNM LiDAR Spec Sheet

The MNM LiDAR system is designed and assembled in the USA.

Request MNM Sample Data Here.  Case Study coming soon.
