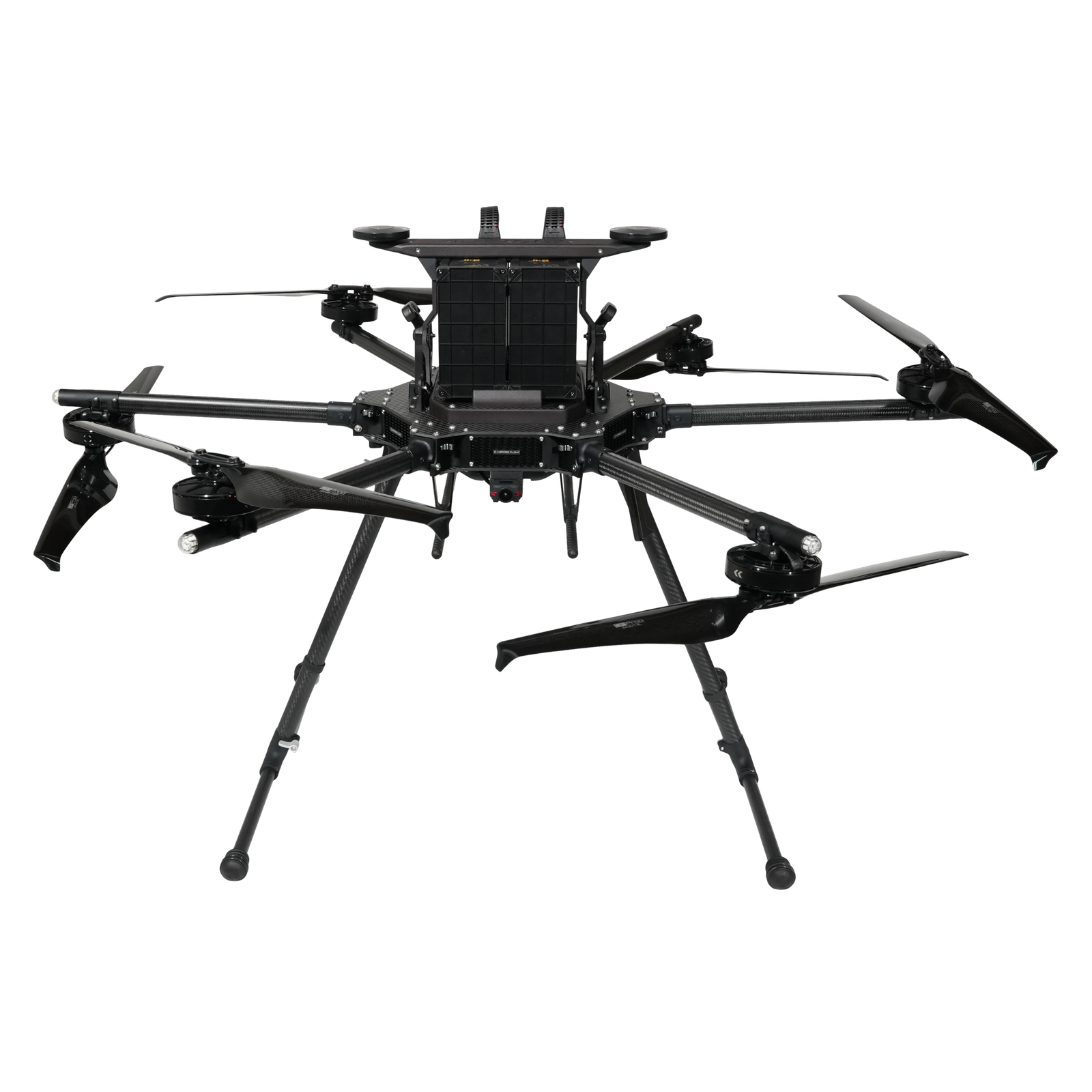

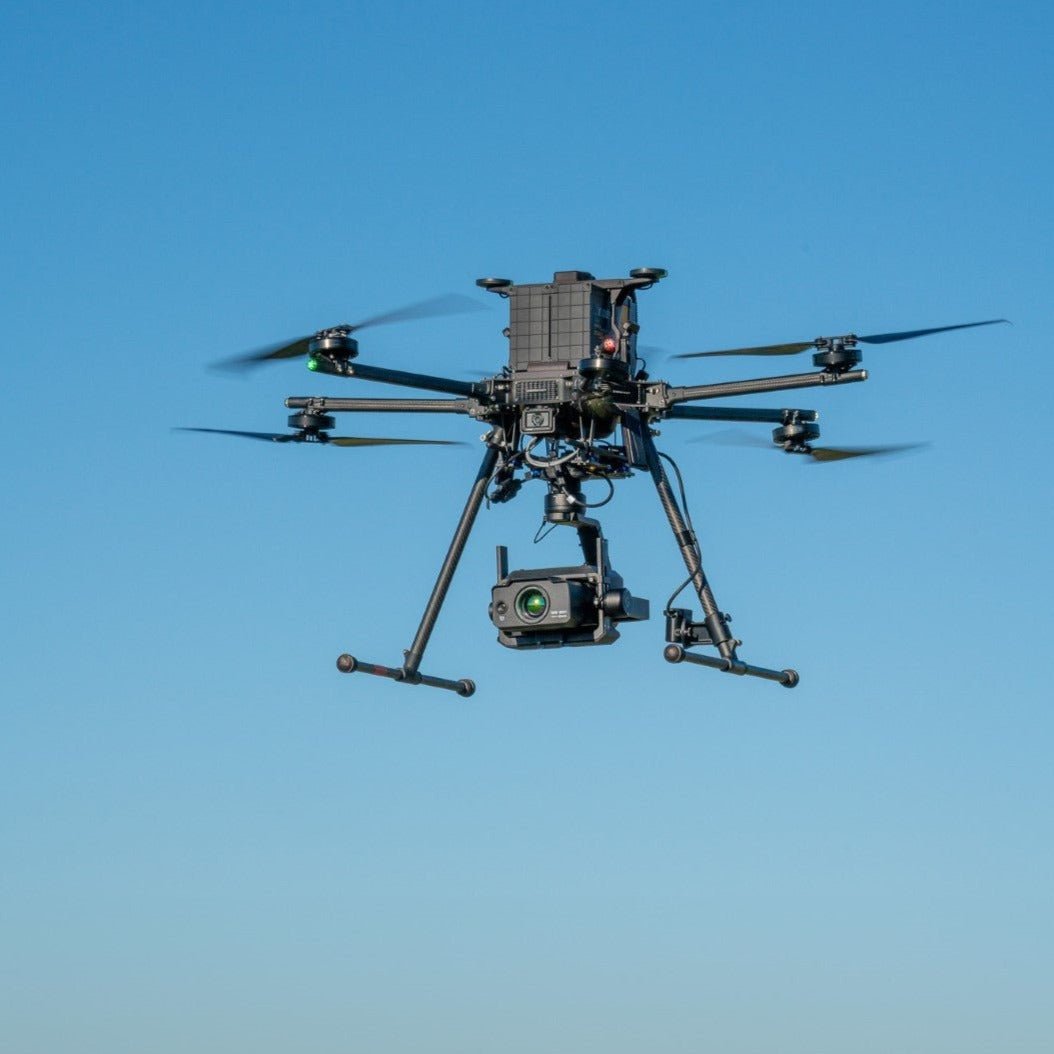

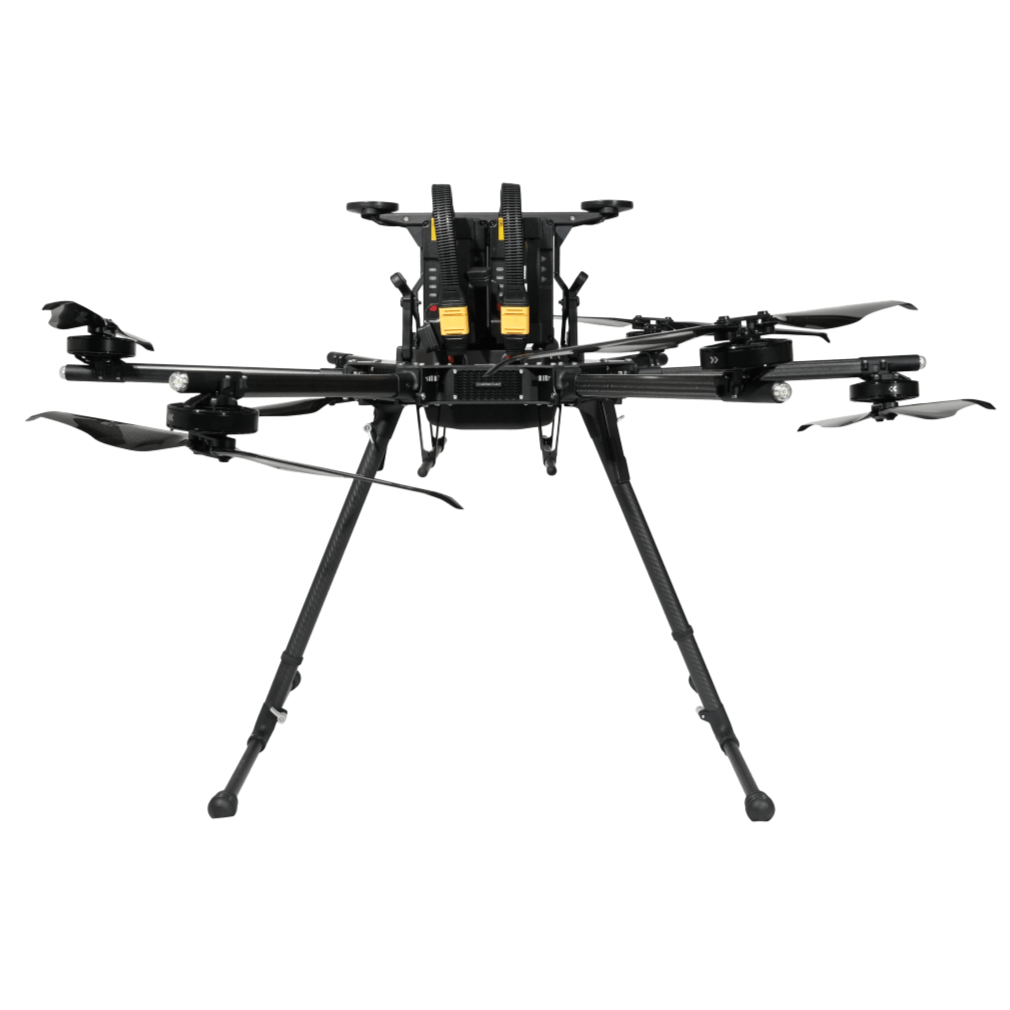

Inspired Flight IF1200A Hexacopter Base Bundle
$17,970.00
180 in stock
Inspired Flight IF1200A Heavy-Lift Hexacopter | Unrivaled Endurance, Limitless Possibilities
Built for professionals and enterprise teams, the IF200 Hexacopter delivers extended flight times, rugged reliability, and seamless payload integration. Optimized for precision-driven missions such as infrastructure inspection, terrain mapping, and LiDAR surveys, this Blue UAS-certified, NDAA compliant platform ensures secure, high-performance operations with rapid deployment in any environment.
Key Features
- 43-minute Max Flight Time
- Interoperable Payloads
- Blue UAS & NDAA Compliant
- 56 MPH Max Speed
- 19.1 lbs Max Payload
- 29 Knot Wind Resistance
- Integrated Remote ID
- FPV Camera

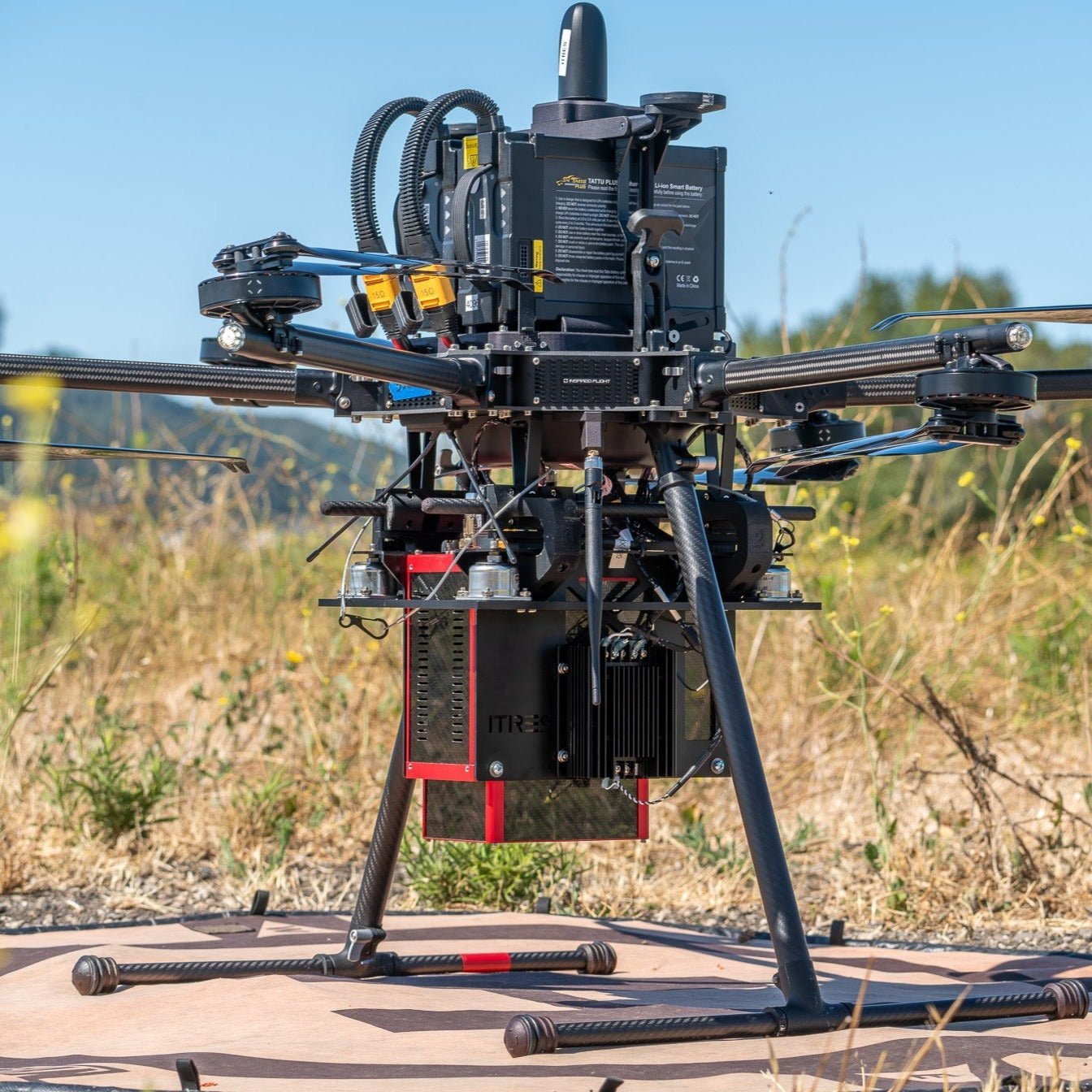

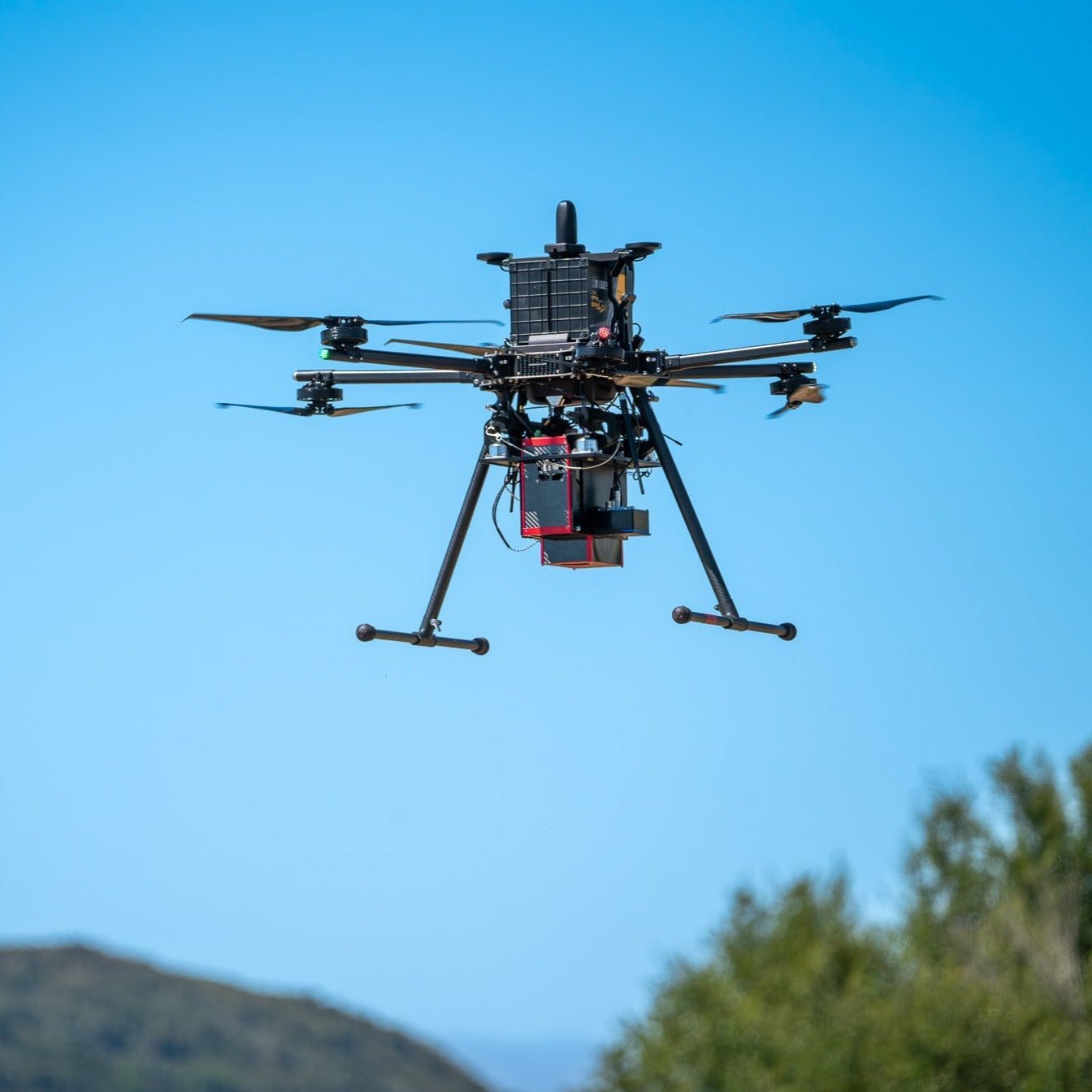

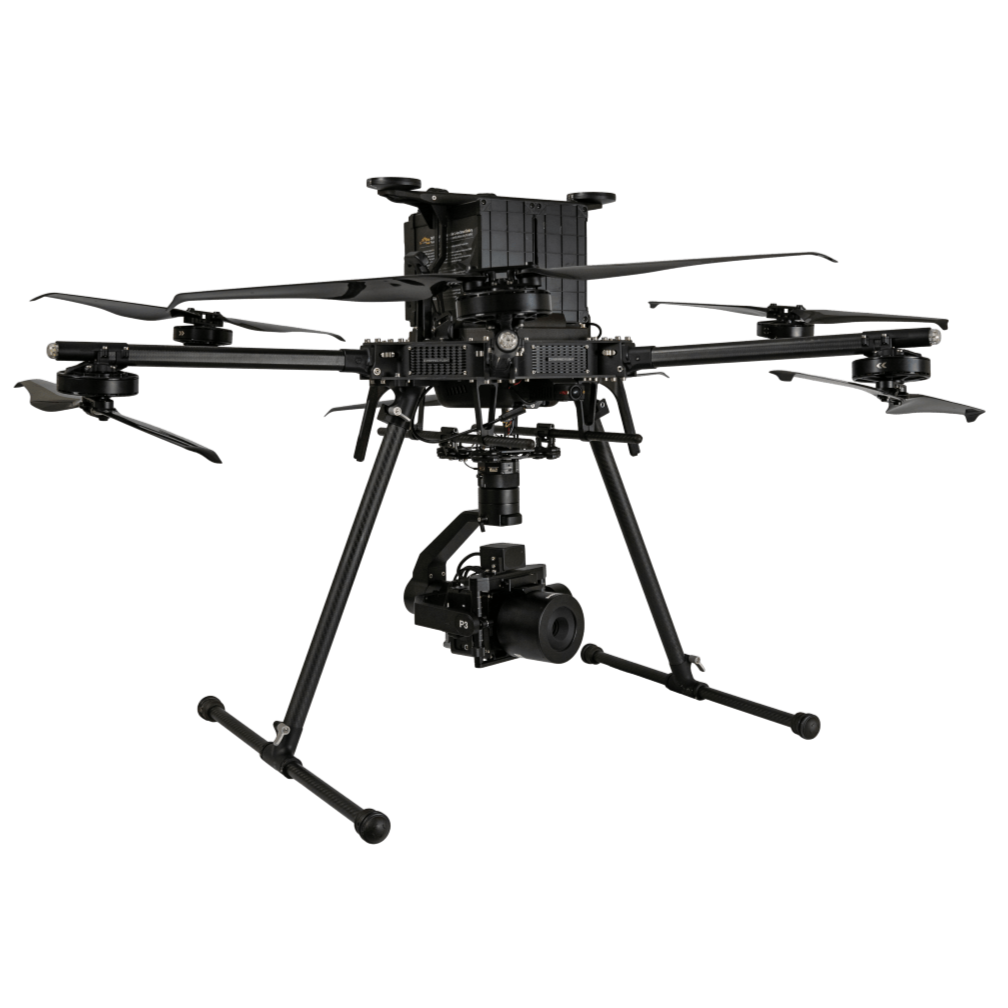

Payload Integrations

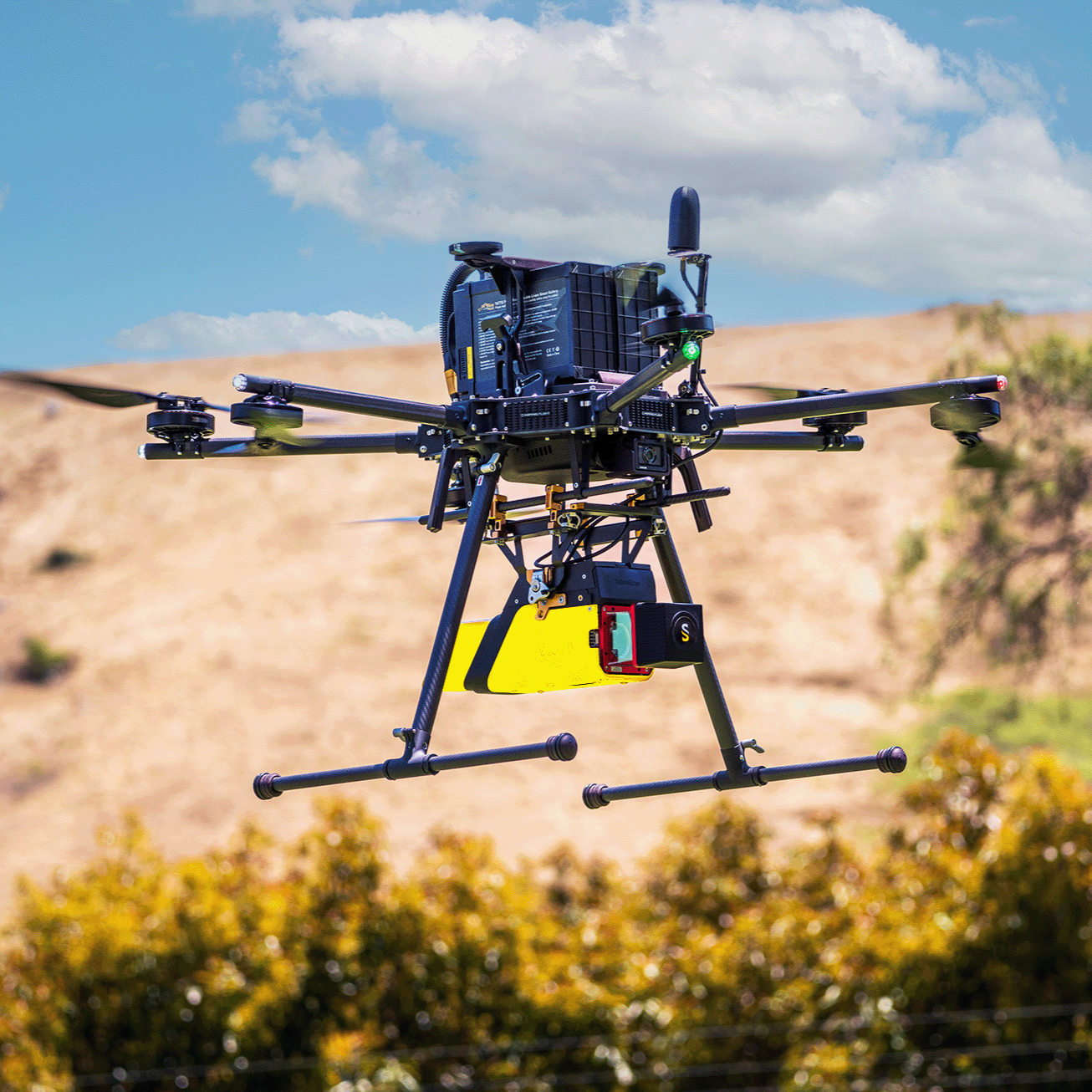

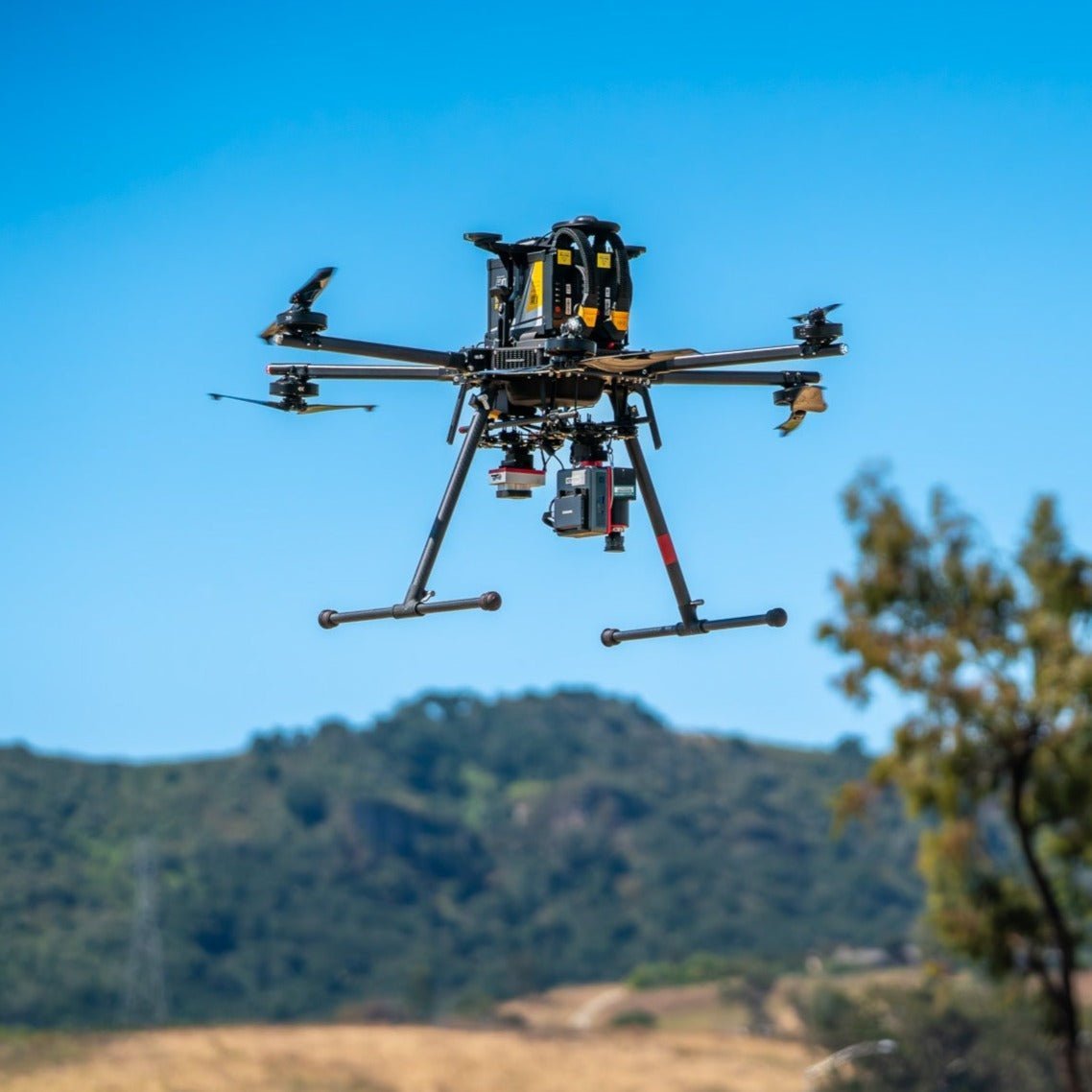

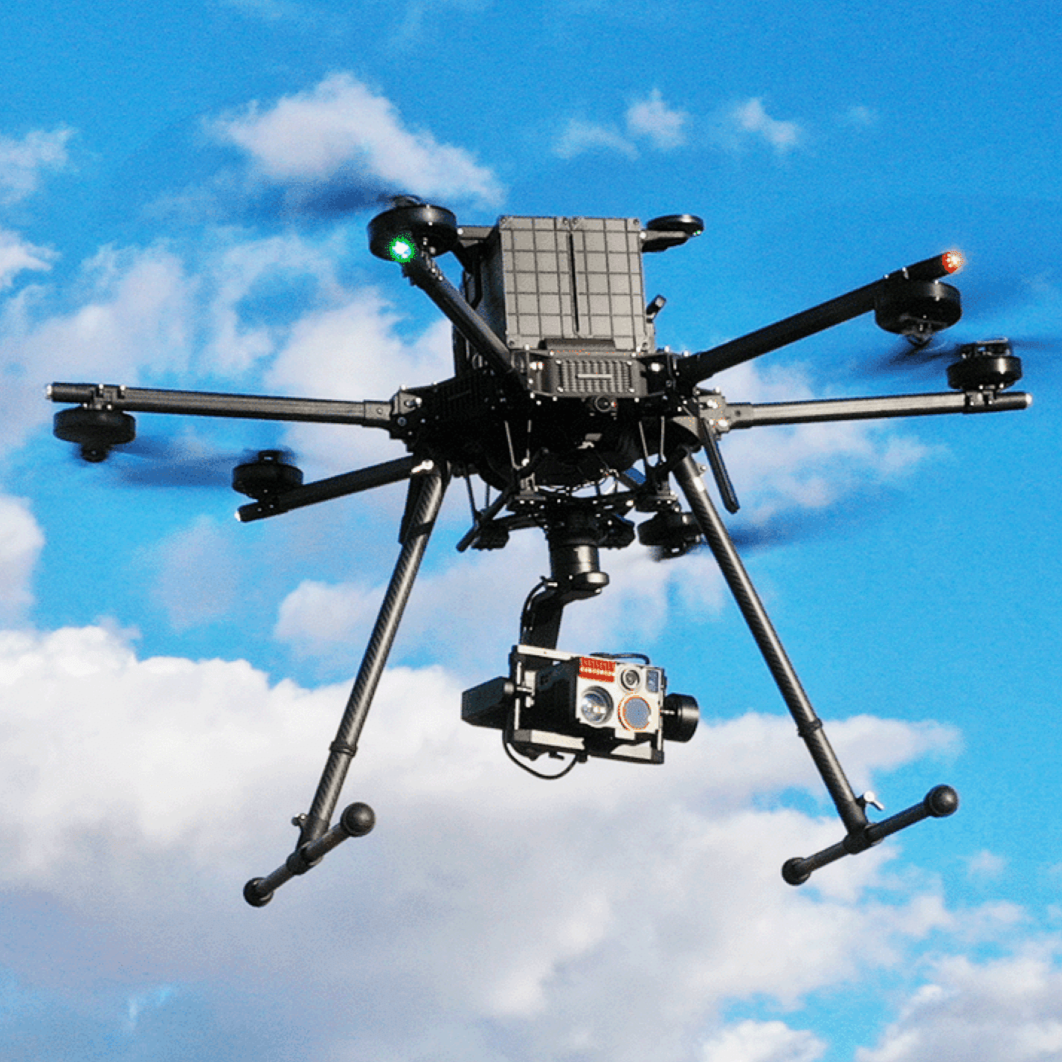

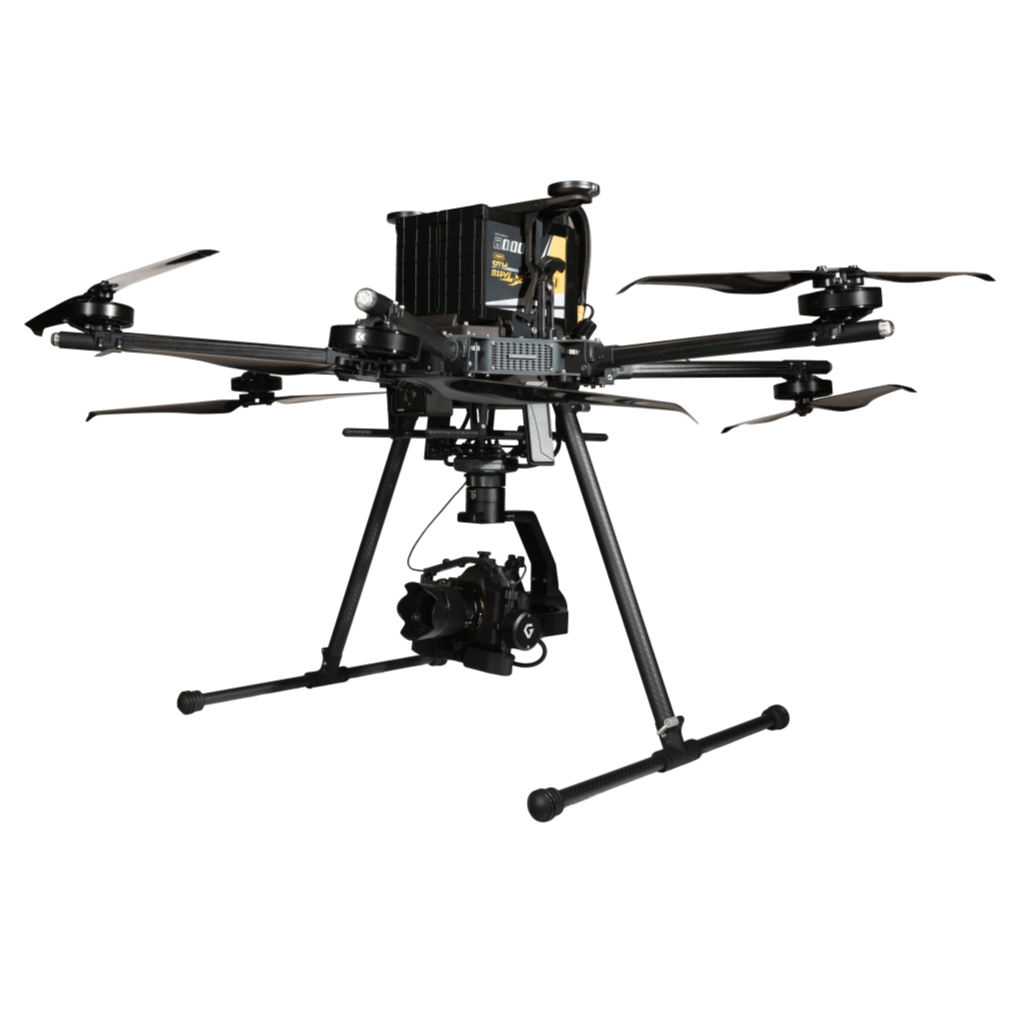

Inspired Flight Technologies partners with trusted manufacturers to offer a range of payload integrations.. With options for Optical Imaging, EO/IR solutions, LiDAR, and Specialized Solutions, the IF1200 provides a trusted platform for safely flying these valuable payloads.
Flight Time
The IF1200 leads its category in flight times, attributed to its 16000mAh Intelligent Batteries. These batteries ensure consistent flight duration regardless of payload. The IF1200 offers a maximum flight time of 43 minutes, and real-world flight times of over 30 minutes are achievable even with an 8 lbs payload.
Heavy Lift
To adhere to FAA Part 107 regulations, the IF1200 has a maximum payload capacity of 19.1 lbs, ensuring compliance with the 55 lbs weight limit. With the appropriate certification, the IF1200 can lift payloads of up to 28.7 lbs.
Safety
The IF1200 features SAFE drone capability, allowing it to maintain safe and controlled flights even in the unlikely event of a motor failure. In such cases, the IF1200A alerts the operator to land immediately while staying in a safe manual flying configuration. This ensures peace of mind for operators, particularly when handling valuable payloads or operating over critical assets.
Situational Awareness
With a built-in FPV camera, pilots can have a first-person view of the drone’s surroundings in real-time. This feature enhances situational awareness, allowing for more precise control and safer operations, especially in challenging environments.
Inspired Care Plans
Protect your drone with an annual Inspired Care Plan. These manufacturer-provided protection plans include training, discounted parts and labor, priority support, and aircraft replacement in the event of a crash.
Inspired Flight IF1200A Hexacopter – Advancing Critical Technology in the United States
Payloads and batteries not included.
In the Box
IF1200A with Blue Herelink GCS
1 – IF1200A Aircraft
2 – Spare Folding Propellers
1 – Blue Herelink GCS
1 – Rugged Transport Case
Specifications
Physical Features
Diagonal Size (propeller center to center): 1,025 mm 40.4 inches
Unfolded Size (flight ready, W x L x H): 165.5 x 154 x 76.5 cm 65.1 x 60.6 x 30.2 inches

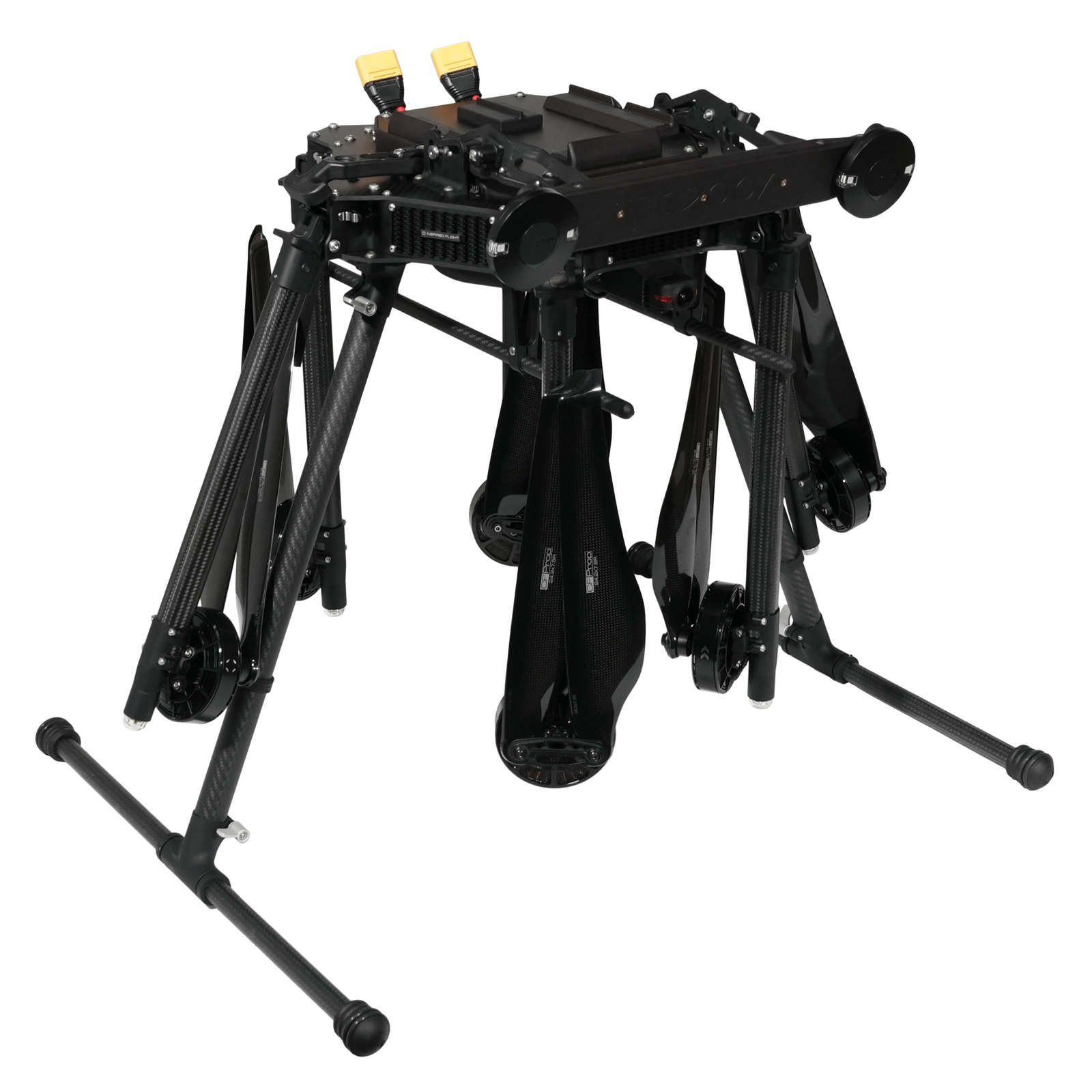

Folded Size (stow, W x L x H): 47.5 x 49.5 x 47 cm 18.7 x 19.5 x 18.5 inches
Empty Weight (w/o batteries): 7.8 kg 17.2 lbs
Weight w/ Batteries: 16.3 kg 35.9 lbs
Max Gross Takeoff Weight: 25.0 kg 55.0 lbs
Max Payload Capacity: 8.7 kg 19.1 lbs
Transport Case Size (W x L x H): 64.8 x 64.8 x 58.4 cm 25.5 x 25.5 x 23.0 inches
Transport Case Weight: (w/ aircraft) 29.0 kg 64 lbs
Performance
| Max Ascent Speed Max Descent Speed Max Air Speed Max Wind Resistance |
5 m/s 2.5 m/s 25 m/s 12 m/s, 15 m/s gusts |
16.4 ft/s 8.2 ft/s 56 mph 23 knot, 29 knot gusts |
| Max Tilt Angle | 30° | |
| Max Angular Velocity | Tilt: 300°/s, Yaw: 45°/s | |
| Operating Temperature | -10°C ~ 40°C | 14°F ~ 104°F |
| Operating Humidity | 10%~95% | |
| Service Ceiling (with given payload) | 3.9 km (12,800 ft) w/ 4 kg, 2.2 km (7,200 ft) w/ 8.7 kg |
Flight Stack
| Flight Controller GNSS / Compass Payload Power Rails |
CubePilot Cube Blue H7 Triple Redundant IMUs CubePilot Here3 M8P (2x) 5v, 12v/15v, 18v, 44.4v (12s battery voltage) |
| Payload Interface | IFT Universal Payload Interface V2.1 |
| Operating Software | Copter by Ardupilot |
Flight Modes
| Position Hold | Holds altitude and position, manual roll and pitch |
| Loiter | Holds altitude and position, precision manual movements using GPS |
| Auto | Executes pre-defined mission |
| RTL | Auto returns to takeoff location and lands |
| Land | Auto land while maintaining position |
| Altitude Hold | Holds altitude only, failsafe mode if GPS signal lost |
