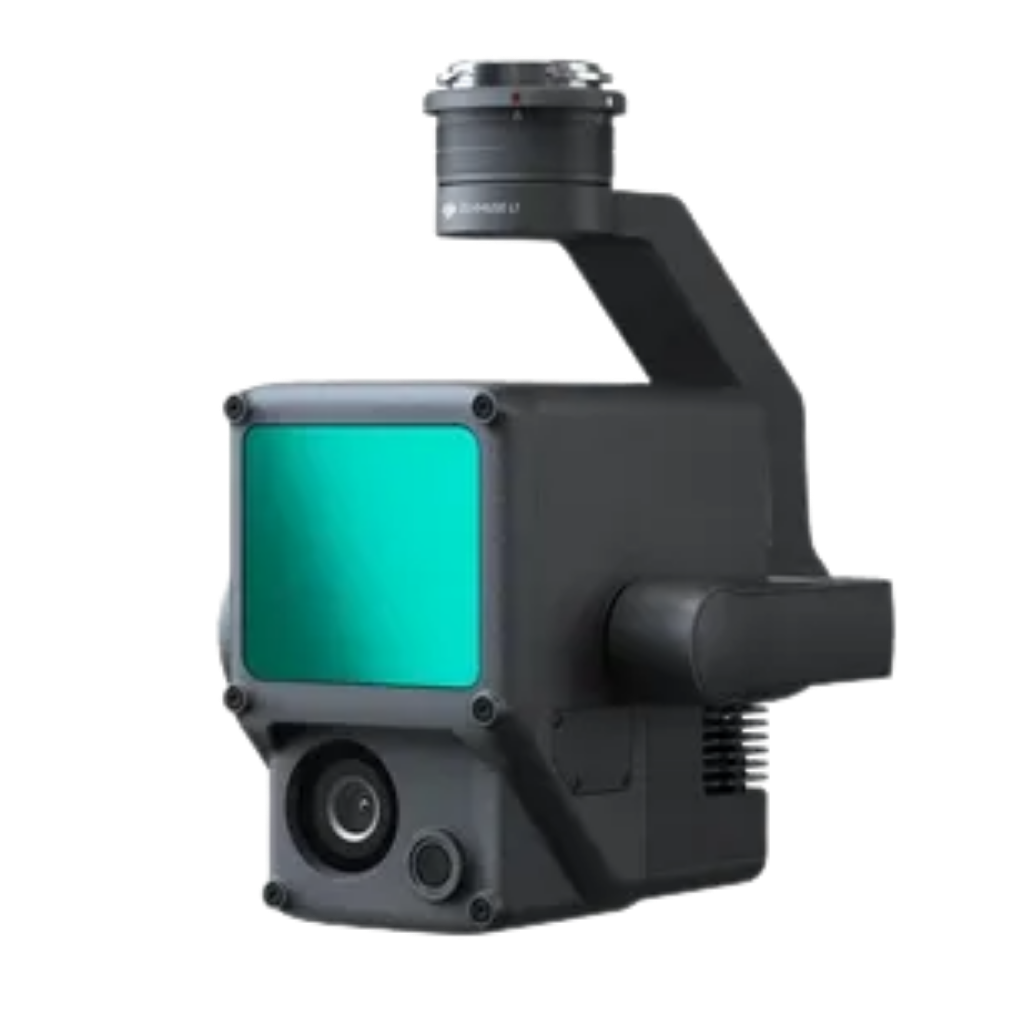

DJI Zenmuse L1 with DJI Care Enterprise Basic

The Zenmuse L1 is no longer available.  The Zenmuse L2 offers a number of improvements:

• System Accuracy spec upgrade to 5 cm horizontal and 4 cm vertically at 150 meters altitude.  Expected accuracy better than 3 cm vertically at 50 meters altitude.
• No warm up time on the L2
• Better RGB camera on the L2

DJI Zenmuse L1 Sample Data

A Lidar + RGB Solution for Aerial Surveying

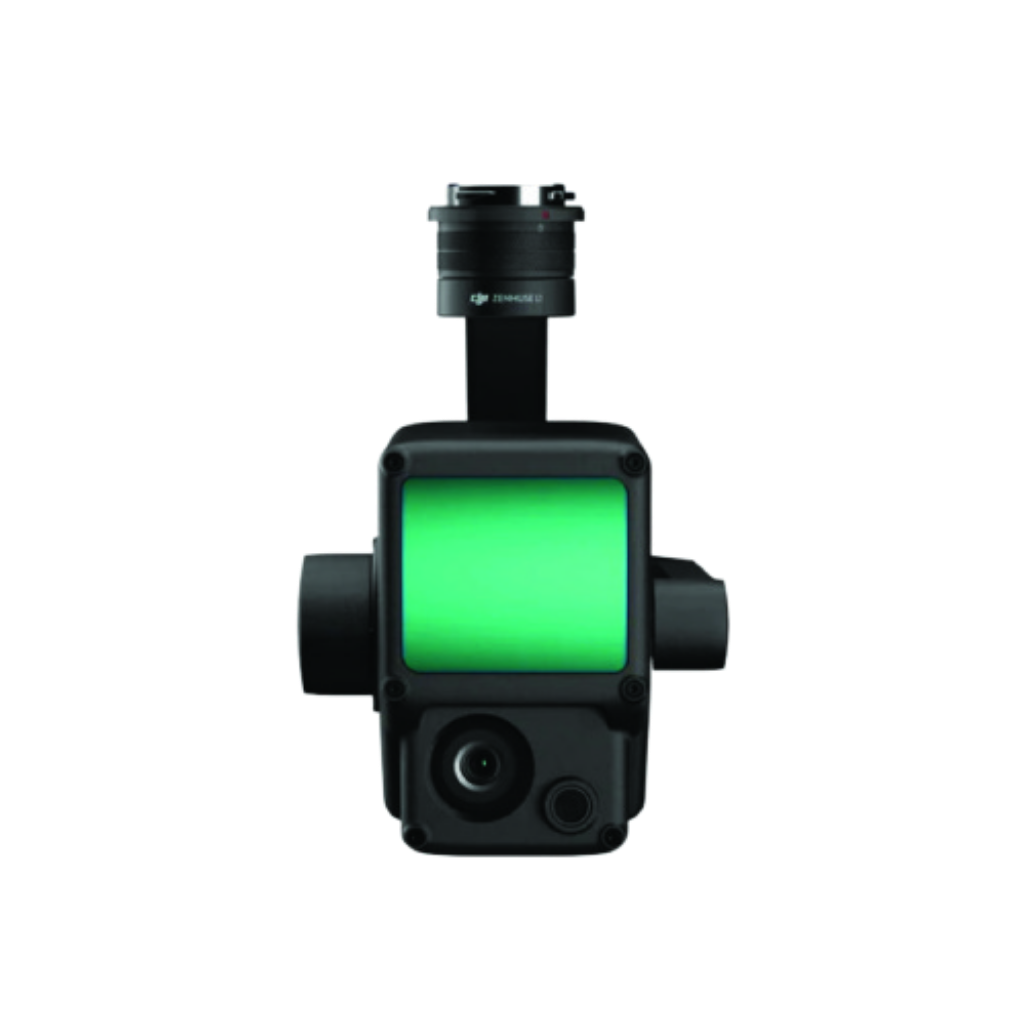

The Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilized gimbal. When used with Matrice 300 RTK and DJI Terra, the L1 forms a complete solution that gives you real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models

Visualize Data as You Fly

LIVOX LIDAR MODULE

• – Frame Lidar with up to 100% effective point cloud results
• – Detection Range: 450m (80% reflectivity, 0 klx) / 190 m (10% reflectivity, 100 klx)
• – Effective Point Rate: 240,000 pts/s
• – Supports 3 Returns
• – Line Scan Mode and Non-repetitive Petal Scan Mode

Everything in View

RGB CAMERA

• – 20MP
• – 1-inch CMOS
• – Mechanical Shutter

Accurate Details at Your Disposal

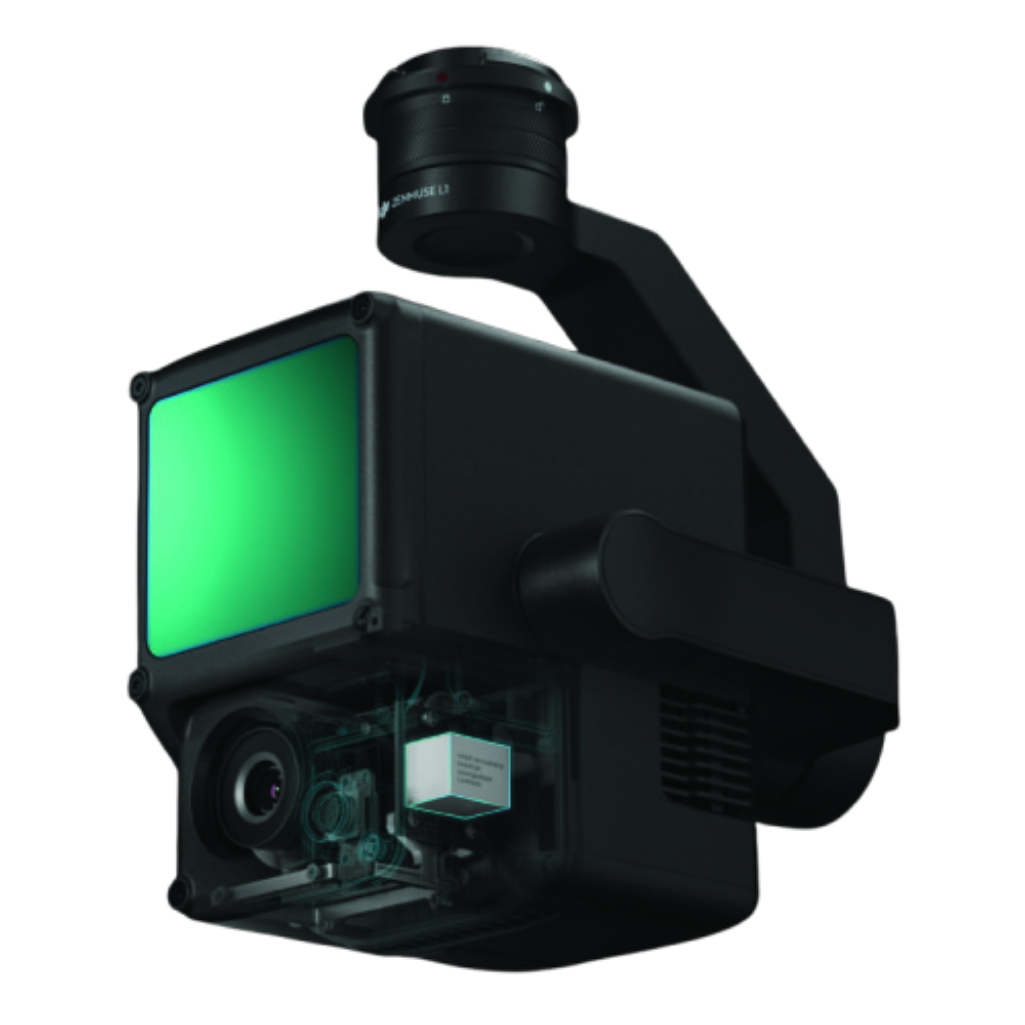

HIGH-ACCURACY IMU

• – Accuracy: 0.025° (roll/pitch) / 0.08° (yaw)
• – Vision Sensor for Positioning Accuracy
• – GNSS, IMU, RGB Data Fusion

Point Cloud LiveView

Real-time point clouds provide immediate insights onsite, so operators are informed to make critical decisions quickly.
You can also verify fieldwork quality by checking point cloud data immediately after each flight.

Measurement and Annotation

Acquire and communicate critical dimensions on the point cloud model using measurements and annotations.

One-stop Post-processing

DJI Terra fuses the IMU and GNSS data for point cloud and visible light calculations, in addition to conducting POS data calculations so you can effortlessly generate reconstructed models and accuracy reports.
