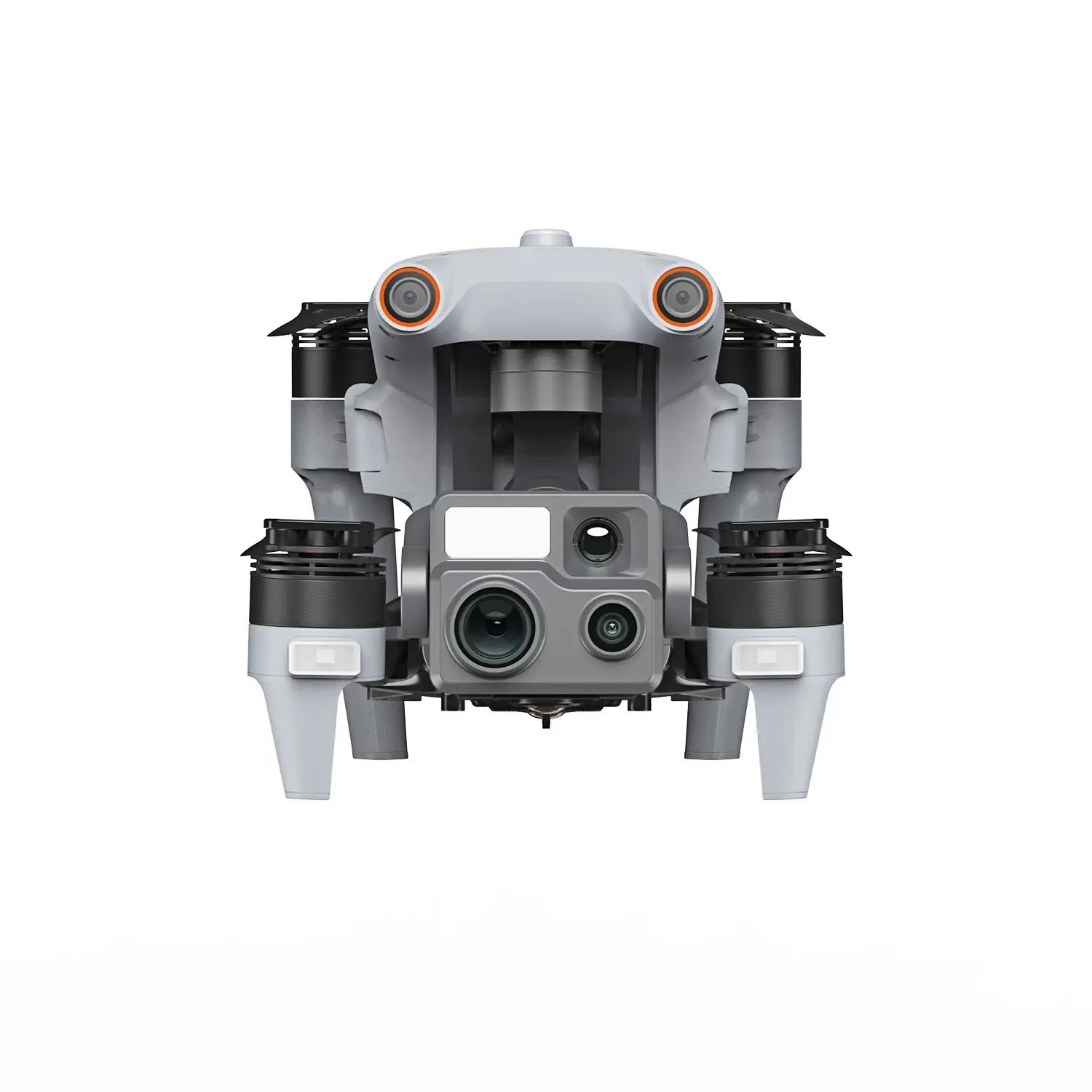

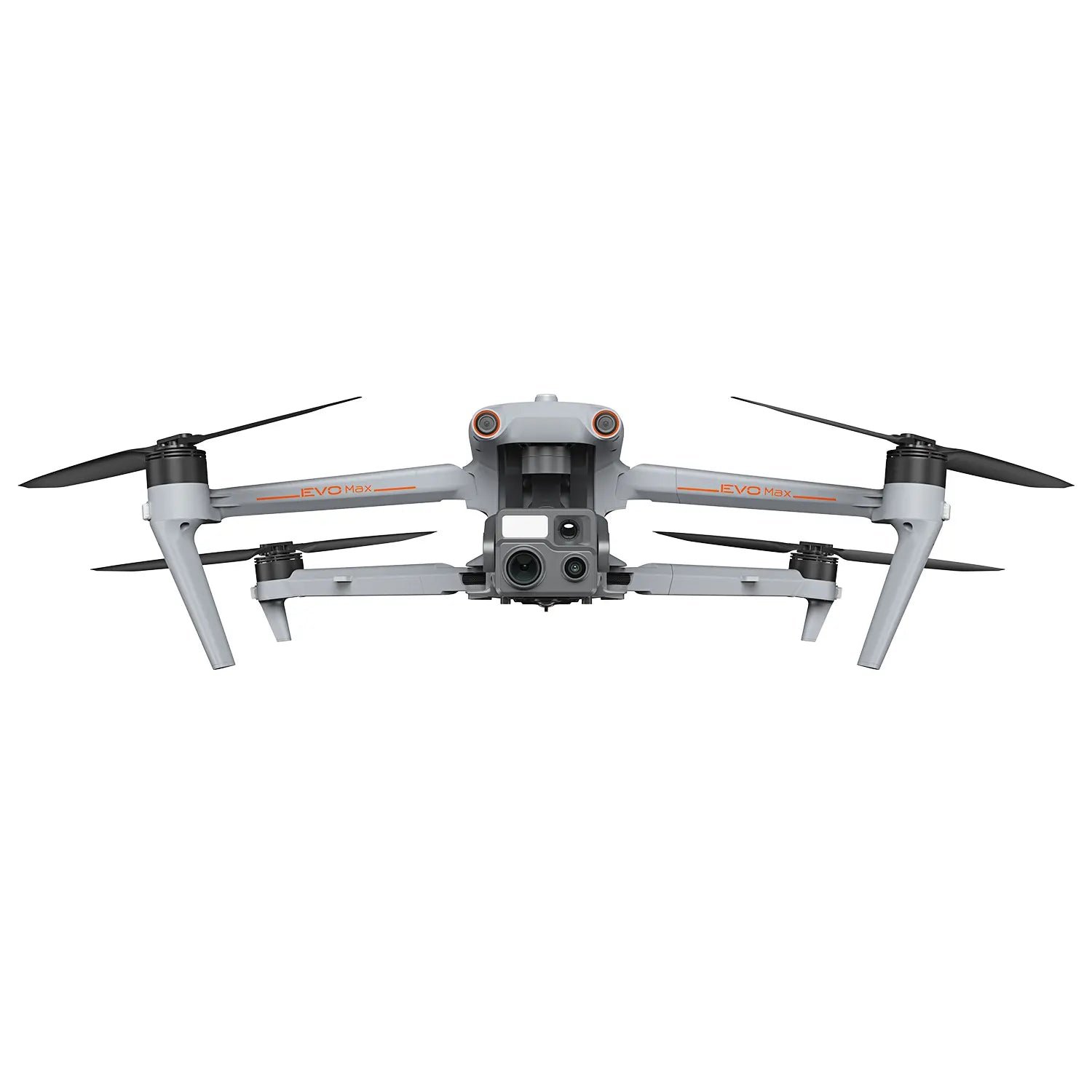

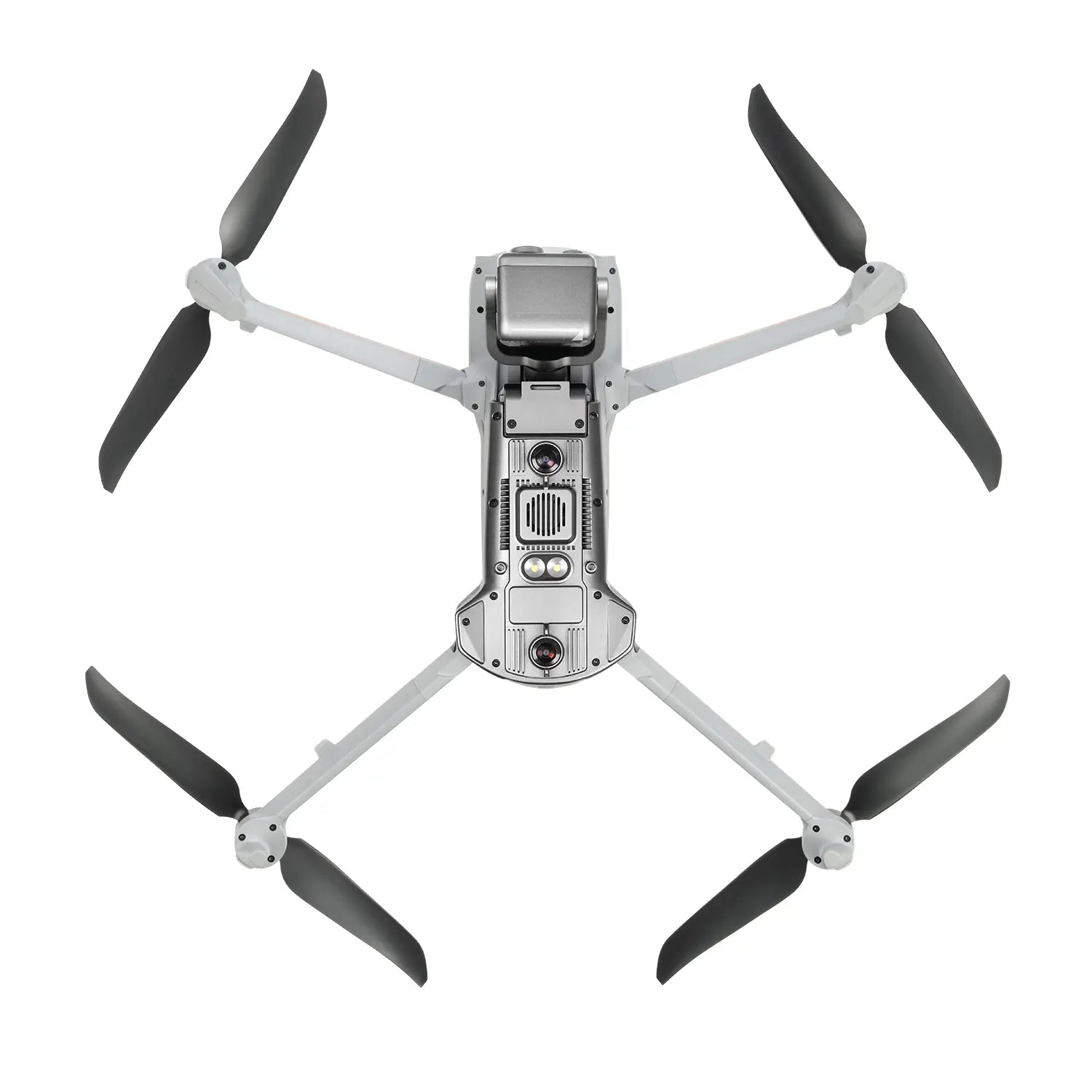

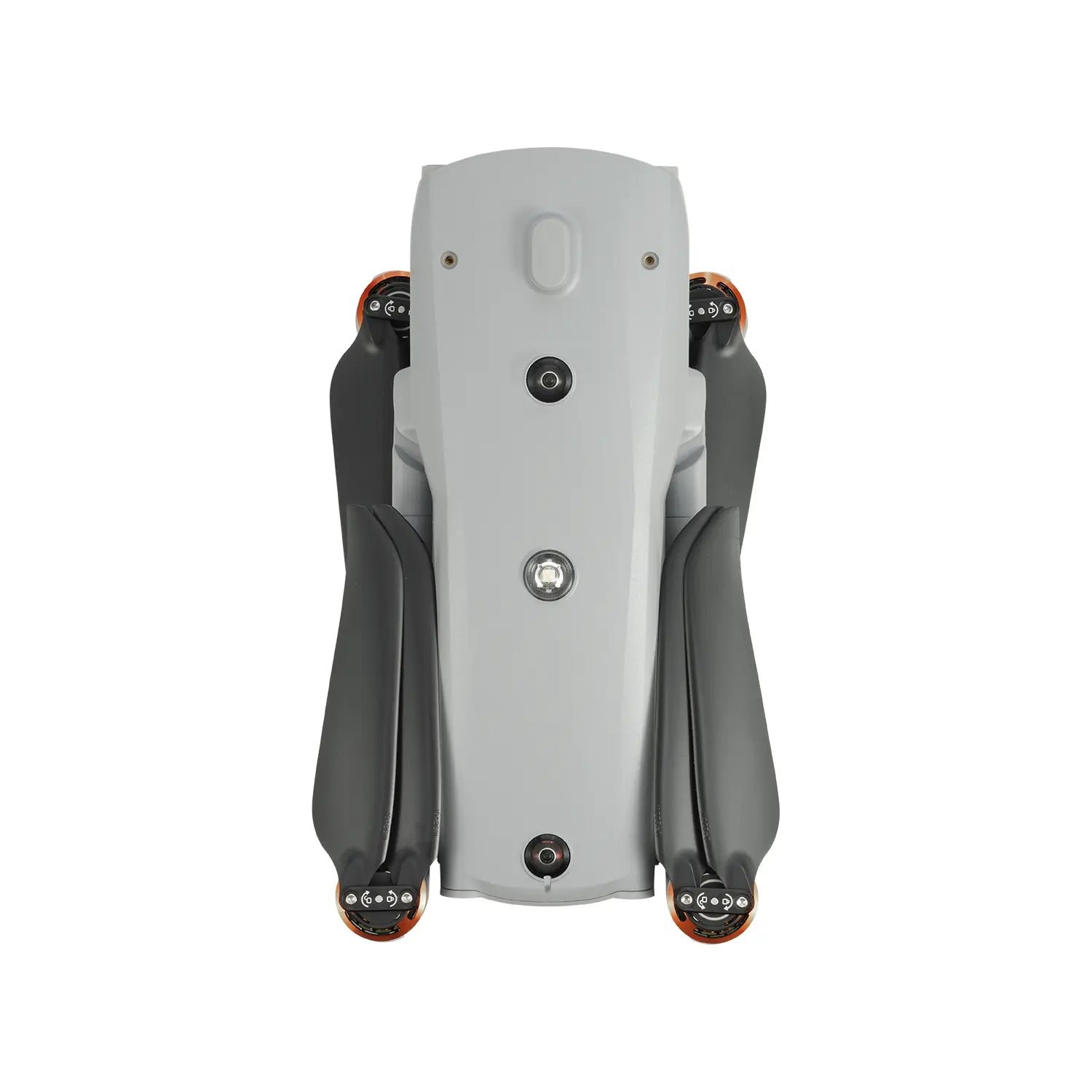

Autel Robotics EVO Max 4T V2 RTK Module Bundle

• 10X Optical Zoom
• Thermal Camera:640×512 | 16x Digital Zoom
• Wide Camera: 50MP | 1/1.28″ CMOS
• Zoom Camera: 48MP | 8K 10x Optical Zoom(160x Max)
• Laser Rangefinder
• Autel SkyLink 3.0 | 12.4 miles Transmission Range
• 720° Obstacle Avoidance
• 42 mins Max Flight Time
• A-Mesh 1.0 | Mesh Networking Technology
• 3D Map Planning | Multiple Mission Types | Data Security
• Multi-channel Projection Screen*
• Autel SDK

[keyfeatures]

• Overview
• Specification

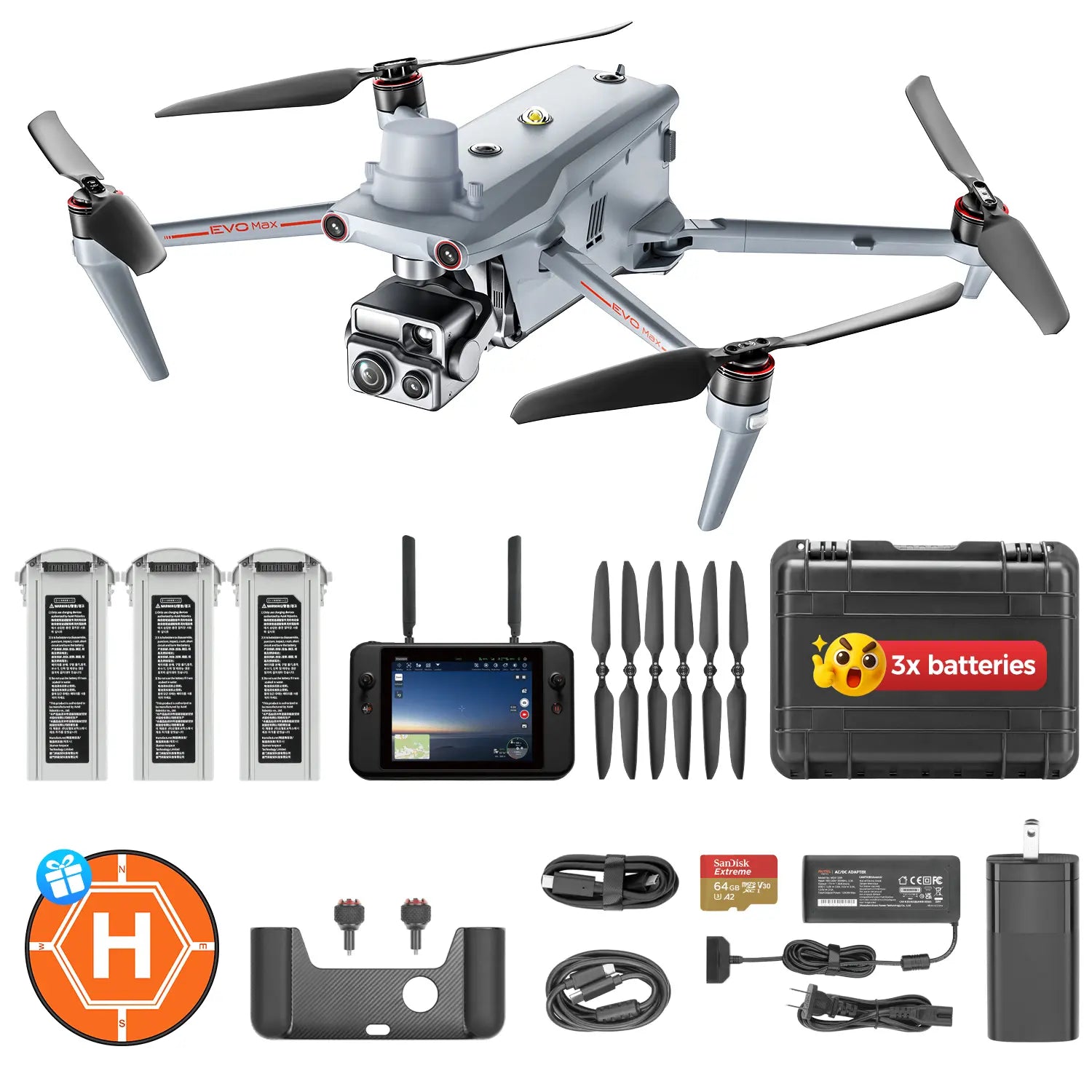

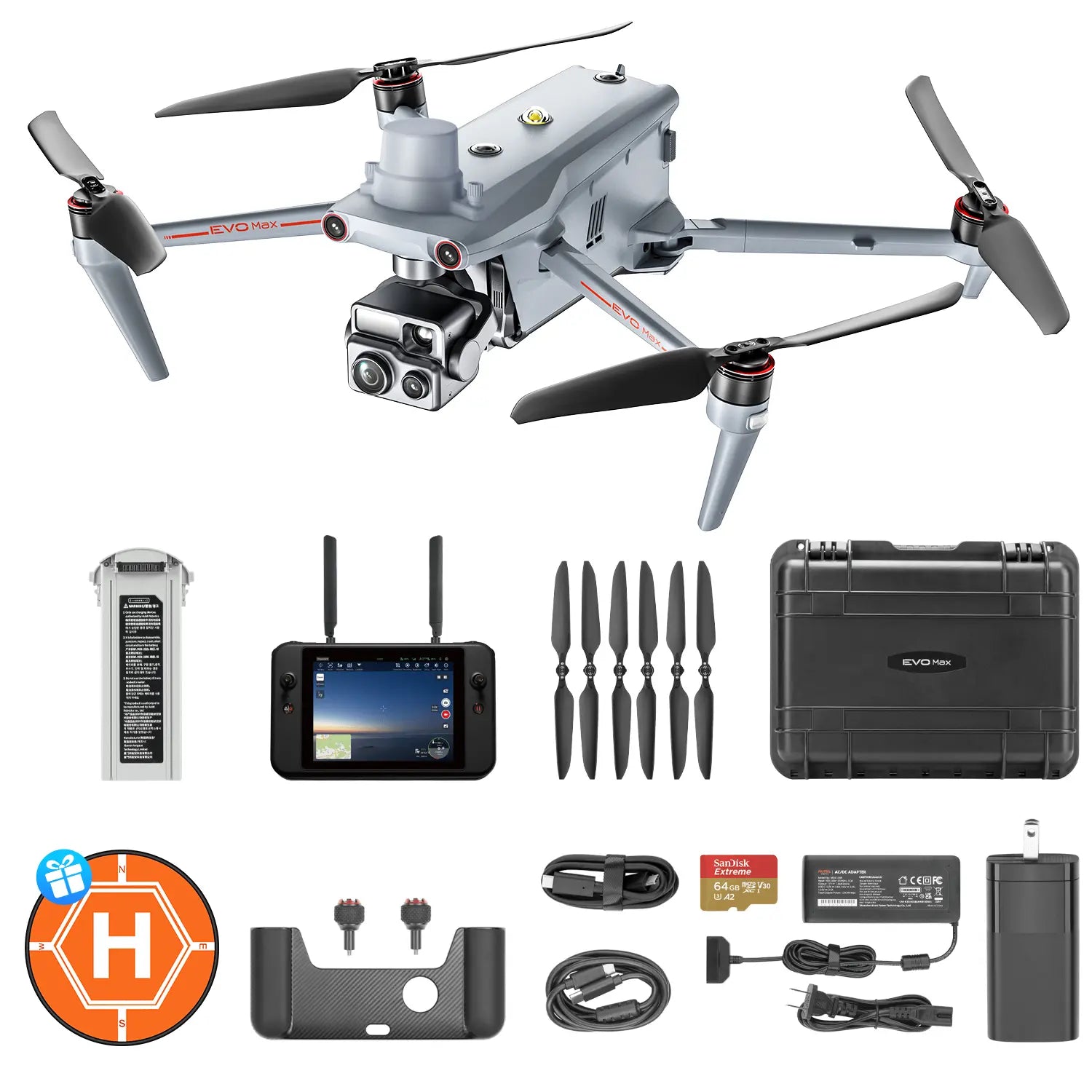

• Packing
• Documents

• Precision Mapping, Simplified Workflow & Exclusive Savings

  •

  • • Centimeter-Level Accuracy Without a Base Station

      Multi-GNSS (GPS/Galileo/BeiDou) and Network RTK deliver real-time centimeter positioning, eliminating the need for external base stations and streamlining large-area mapping.

    • Smart Software Integration for Rapid Results

      Seamless compatibility with Autel Mapper enables instant 2D/3D model.

    • Save $229 With RTK Module Bundle

      229USD discount compared to purchasing separately—maximize value without compromising precision.

  •

  • • Centimeter-Level Accuracy Without a Base Station

      Multi-GNSS (GPS/Galileo/BeiDou) and Network RTK deliver real-time centimeter positioning, eliminating the need for external base stations and streamlining large-area mapping.

    • Smart Software Integration for Rapid Results

      Seamless compatibility with Autel Mapper enables instant 2D/3D modeling and multi-drone collaboration, ideal for emergency response and industrial inspections.

    • Save $229 With RTK Module Bundle

      %229 discount compared to purchasing separately—maximize value without compromising precision.

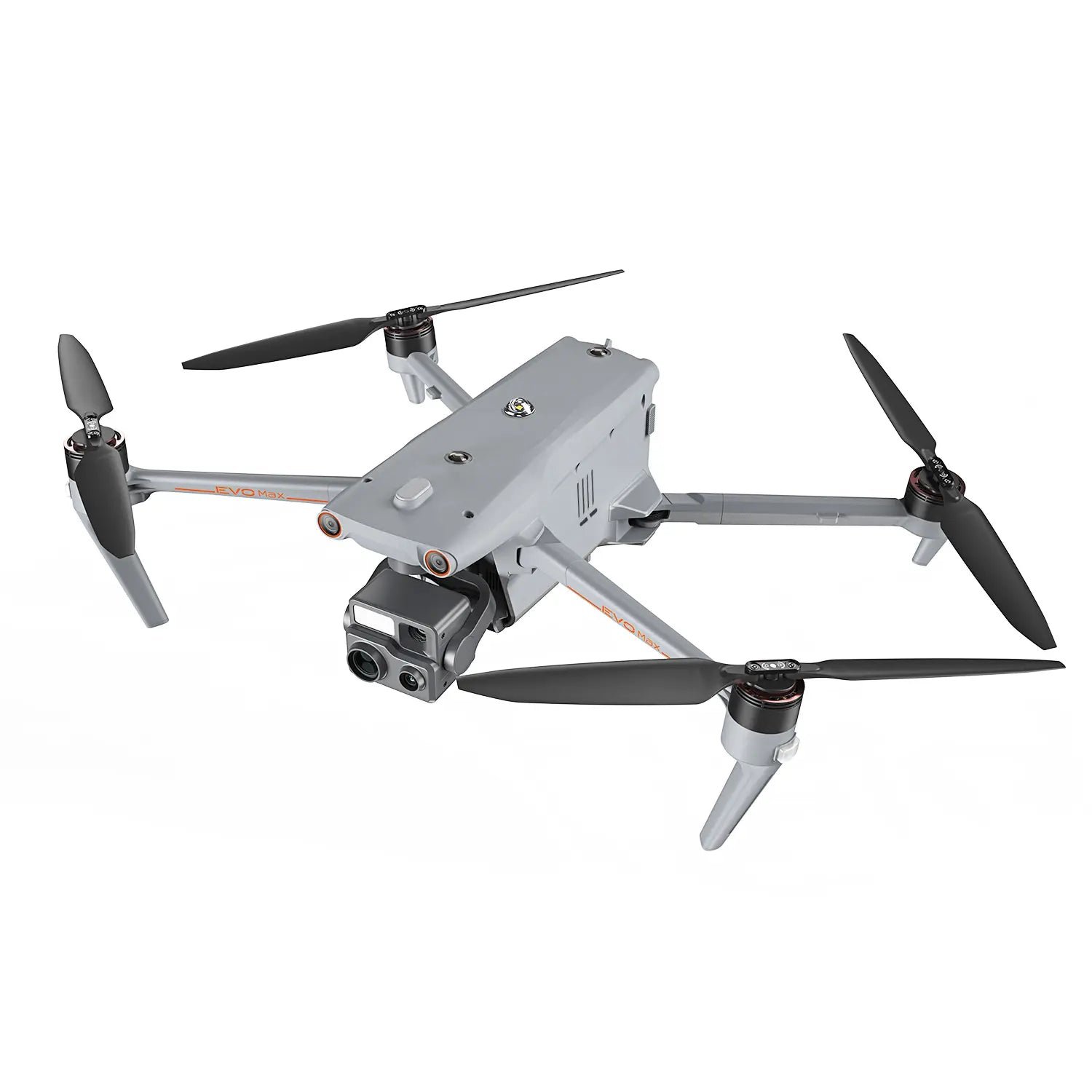

  Autel EVO Max 4T V2

  Autel EVO Max 4T V2 brings powerful technologies and advanced autonomy to users. EVO Max 4T V2 assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance.Advanced sensors make flight in GPS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios.With a foldable, weather-resistant design, Autel EVO Max 4T is as portable as it is capable.



  •

    15s
    Take Off
  •

    8K 10x
    Optical Zoom
  •

    IP43
    Weather Rating
  •

    Hot-Swappable
    Batteries
  •

    Navigation
    In GPS Denied Environments

  •

    12.4 miles
    Transmission Range
  •

    42 Minutes
    Flight Time
  •

    720°
    Obstacle Avoidance

  • Autel Autonomy

    EVO Max 4T V2 is the only commercial drone that combines traditional binocular vision systems
    with millimeter wave radar technology. This allows Autel EVO Max 4T V2’s onboard Autel Autonomy
    Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in
    low light or rainy conditions.

    •
      Binocular Vision System
    •
      Millimeter Wave Radar
  • • Autonomous Path Finding

      Autel EVO Max 4T’s Autonomy Engine collects surrounding environmental data and plans 3D flight paths
      through complex environments such as mountains, forests, and buildings. Use cases
      include rapid 3D scene reconstruction, public safety overwatch, industrial inspection,
      and land surveying.

    •
  • • Navigation in GPS Denied Environment


      Advanced sensors allow Autel EVO Max 4T V2 to navigate within hardened structures,
      underground, or in environments without GPS.

    •
  • • Accurate Object Identification and
      Tracking

      Based on Autel’s AI recognition technology, Autel EVO Max 4T V2 can automatically identify
      and lock onto different types of targets such as heat sources, moving people, or
      vehicles and achieve high-altitude tracking and data collection for law enforcement.

    •

  No Blind Spots

  Ultimate Obstacle Avoidance

  EVO Max 4T V2 is the only commercial drone that combines traditional binocular vision systems with millimeter
  wave radar technology. This allows Autel EVO Max 4T’s onboard Autel Autonomy Engine to perceive objects
  down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.

  • Anti Jam, Anti Interference

    Autel EVO Max 4T V2 uses advanced flight control modules and algorithms specially designed to
    counter RFI, EMI, and GPS spoofing. This enables Autel EVO Max 4T to fly confidently near power
    lines, critical structures, and in complex areas.

  • Weather Rating-IP43

    Autel EVO Max 4T V2 with IP43 Ingress Protection rating, it means Max 4T is protected against
    solid objects greater than 1mm and against sprays of water up to 60 degrees from the vertical.

    Operation Temperature

    -4 ℉ to 122 ℉

  •

  • Weather Rating-IP43

    Autel EVO Max 4T with IP43 Ingress Protection rating, it means Autel Max 4T is protected against
    solid objects greater than 1mm and against sprays of water up to 60 degrees from the vertical.

    Operation Temperature

    -4 ℉ to 122 ℉

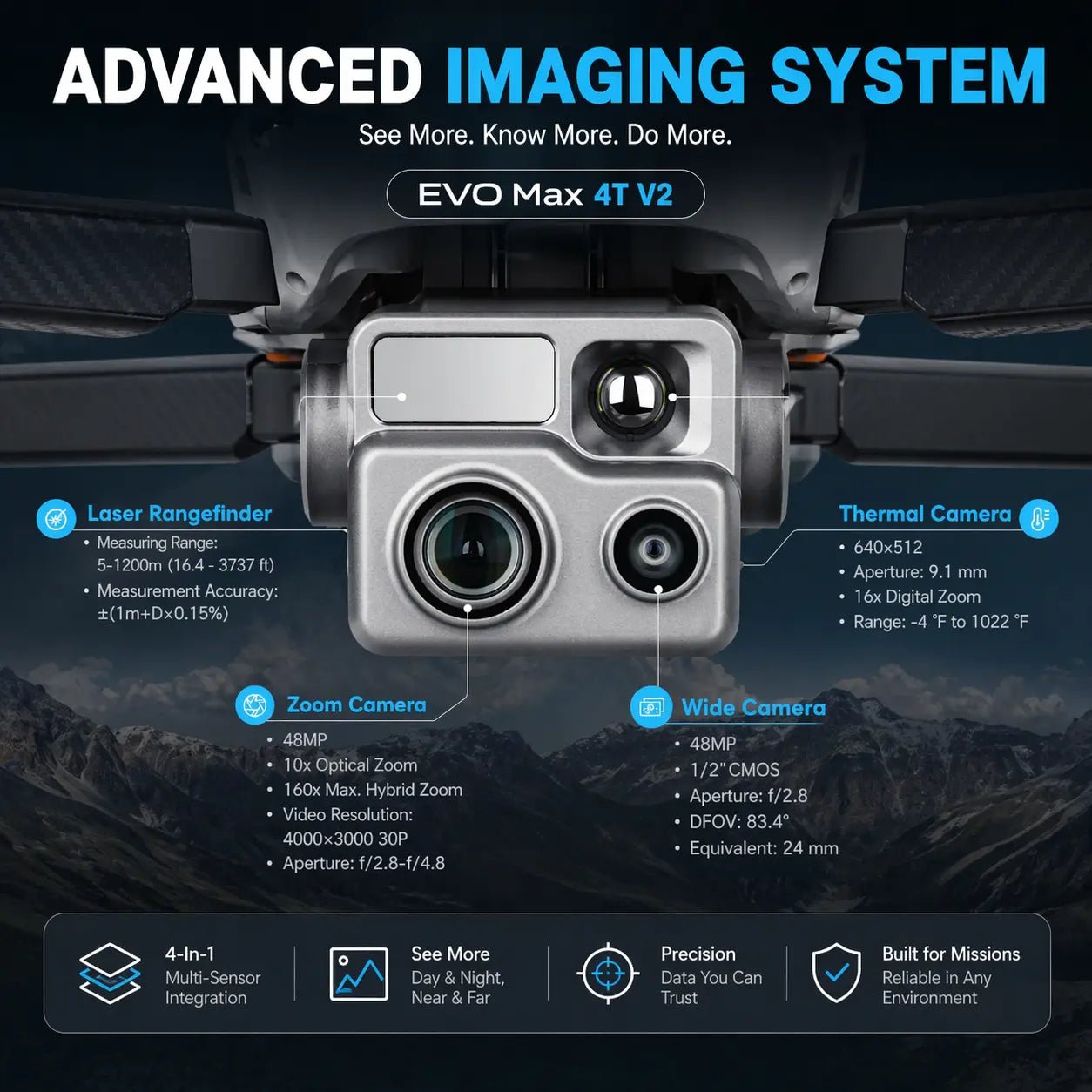

  4T V2 Mission Ready Payload

  Autel Max 4T V2 gimbal camera system combines a wide-angle camera, zoom camera, thermal camera, and a laser
  rangefinder, offering a comprehensive solution for data capture across a variety of environments. This
  versatile payload is designed to excel in multiple application scenarios, enabling precise decision-making
  and ensuring optimal performance under diverse conditions.




  Thermal Camera

  Laser Rangefinder

  Wide Angle Camera

  Zoom Camera

  • 640*512 resolution
  • 9.1 mm focal length
  • 16x digital zoom
  • Range: -4℉ to 1.22 ℉
  • Temperature accuracy: ±2℃ or reading 2℃
  • Measuring Rnage: 5-1200m(16.4-3737 ft)
  • Measurement Accuracy: ±(1m+D*0.15%) *where D is the distance to a vertical reflecting plane
  • 1/1.2″ CMOS, 48MP
  • Equivalent: 24mm
  • Aperture: f/2.8
  • DFOV: 83.4°
  • 1/1.2″ CMOS, 48MP
  • Apeature: f/2.8-f/4.8
  • 10x Optical Zoom
  • 160x Max. Hybird Zoom
  • Video Resolution:4000*3000 30fps
  • Phote Size: 4000*3000, 8000*6000

  Chase the Heat and Explore the Night

  • • Super Zoom

      The zoom camera supports 8K 10x continuous optical zoom and a maximum hybrid zoom of up
      to 160x, making vehicles and ships visible up to 2 kilometers away.

      Operators do not need to go to the scene, thereby improving work efficiency and ensuring
      the safety of personnel and flight equipment. This efficient capability empowers
      applications in energy inspections, emergency rescue, and public safety and security
      industries.

  • • Super-sensitive Imaging

      Video: Capable of recording up to 4K 30p extreme low-light videos, with ISO reaching up
      to 64000. Even in moonlight conditions, it can capture target details.

      Photography: Supports intelligent hardware multi-frame noise reduction and HDR fusion
      technology, ensuring delicate and clear photos in low-light environments.

    • Super-sensitive Imaging

      Video: Capable of recording up to 4K 30p extreme low-light videos, with ISO reaching up
      to 64000. Even in moonlight conditions, EVO Max 4T can capture target details.

      Photography: Supports intelligent hardware multi-frame noise reduction and HDR fusion
      technology, ensuring delicate and clear photos in low-light environments.

  • • Superior Infrared

      The zoom camera supports 8K 10x continuous optical zoom and a maximum hybrid zoom of up
      to 160x, making vehicles and ships visible up to 2 kilometers away.

      Operators do not need to go to the scene, thereby improving work efficiency and ensuring
      the safety of personnel and flight equipment. This efficient capability empowers
      applications in energy inspections, emergency rescue, and public safety and security
      industries.

  • • Precision Ranging

      One-click pinpoint positioning enables rapid acquisition of target location, with a
      maximum ranging distance of up to 1.2 kilometers.

    • Precision Ranging

      One-click pinpoint positioning enables rapid acquisition of target location, with a
      maximum ranging distance of up to 1.2 kilometers.

  Platform Capability

  EVO Max 4T V2 redefines portability with its robust performance and all-weather design, making it the ideal
  choice for versatile aerial operations. Autel EVO Max 4T boasts an impressive 42 minutes of maximum flight time, a top
  horizontal speed of 23 m/s, and an image transmission range of up to 12.4 miles.

  • 42 mins
    Max. Flight Time
  • 23m/s
    Max. Horizontal Speed
  • 12.4 miles
    Image Transmission Range
  • 27 mph*
    Max. Wind Resistance



  Hot-Swappable Battery

  Autel EVO Max 4T hot-swappable battery system, which allows for extended flight times without the need for
  downtime. This system allows users to easily swap out batteries while the drone is still in operation,
  making it ideal for use in time-critical applications where every second counts.

  • • 8070 mAh

      Capacity

    • 14.88V

      Voltage

    • LiPo 4S

      Battery Type

    • 120wh

      Energy

    • 520g

      Net Weight

    • Support

      Hot Swap

  •

  A-Mesh Networking Solution

  Autel EVO Max 4T V2 introduces the innovative A-Mesh system, enabling seamless drone-to-drone autonomous
  communication, connection, and collaboration. Unlike traditional communication chains, the system ensures
  continuous data relay, even if a single drone fails or disconnects, thanks to its strong anti-interference
  capabilities.

  •

    Zonal operations

    Autel EVO Max 4T V2 supports dual-drone dual-control to achieve zonal operations of aircraft,
    improving flight work efficiency. EVO Max 4T also supports mutual obstacle avoidance among drones within
    the network, ensuring flight operation safety.

  •

    Information sharing

    The two remote controllers within the network can simultaneously monitor the aircraft footage.
    The AI target recognition feature used in the lead controller can also be displayed on the
    member controller. Additionally, both controllers can utilize the pinpoint positioning feature.

  •

    Relay operations

    In scenarios with signal obstructions or weak signals such as crossing hills or remote areas, the
    aircraft can be quickly deployed as a mobile relay communication node, providing reliable signal
    support for another member aircraft at a distance, efficiently expanding the communication
    coverage area.

  Autel SkyLink 3.0

  Autel Max 4T SkyLink 3.0 system is a highly advanced drone communication technology, offering impressive
  specifications for enhanced flight performance. Here’s a summary of its key features:

  • 12.4 miles

    Image Transmission Distance
  • <150 ms

    Latency
  • 1080p/60fps
    Real-Time Image Quality
  • 900MHz/2.4GHz/5.2GHz/5.8GHz**
    Frequency Bands



  This feature will be available in a future update. **5.2GHz is only applicable for FCC, CE, and UKCA regions.
  900MHz is only applicable for FCC regions.

  Autel Enterprise App Platform

  The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new
  interface for simple, efficient operation. Additional features and semi-autonomous modes maximize Autel EVO
  Max 4T V2’s mission capability.



  Smart Features

  • • 3D Map Planning
      Plan, create, and execute 3D waypoint mission plan on a 3D map.
    •
    • 3D Map Planning
      Plan, create, and execute 3D waypoint mission plan on a 3D map.
  • • Quick Mission*
      Temporary quick missions can be created while executing other missions, and
      multiple sub-missions can be stacked for enhanced flexibility.
    •
    • Quick Mission*
      Temporary quick missions can be created while executing other missions, and
      multiple sub-missions can be stacked for enhanced flexibility.
  • • Mission Reproduction*
      With this feature activated, fly a manual or semi-autonomous mission, or string
      multiple missions together. Autel EVO Max 4T will automatically record the camera angles
      and replicate the mission you just flew.
    •
    • Mission Reproduction*
      With this feature activated, fly a manual or semi-autonomous mission, or string
      multiple missions together. Autel EVO Max 4T will automatically record the camera angles
      and replicate the mission you just flew.

  Multiple Mission Types

  The Enterprise App provides various autonomous and semi autonomous mission planning for public safety,
  inspection, and surveying.

  •

    Automatic Mission Generation And Data Capture*

    Automatically produce routes by adding regional boundary points through dots or importing KML
    files

  •

    Polygon Mission

    Supports one-click automatic generation of polygon flight areas <

  •

    Waypoint Missions

    Users can add waypointsfor flexible, non-structured flight paths

  Data Security

  Privacy Protection: Data involving user and aircraft information, including flight logs, locations, and
  account information can only be physically accessed via the aircraft locally.

  Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, are
  password-protected.



  Autel SDK

  The Autel SDK is open to the world, helping developers and partners reduce software and hardware development
  costs and jointly create a new industry ecosystem.

  •
  • •
      Mobile SDK

    • Open UX SDK (iOS/Android) can directly call up the ready-made interactive interface.

  Accessories

  • •
    • Speaker and
      Spotlight Combo
      Daylight Readable Display: 7.9 inches, 2000nit maximum
      brightness, 2048*1536 resolution. SuperDownload: Download footage from drone to mobile
      device at a maximum rate of 20MB/s. Functional Interface: HDMI ports allow connection to
      3rd party displays or monitors. Ultra-Long Battery Life: Up to 4.5 hours of continuous
      operation. 2-hr fast charging from empty. Local Storage: Built-in 128G storage space
      allows 3rd party apps and mission media storage.

      Learn
      More

  • •
    • RTK Module

      The Autel Robotics EVO Lite Intelligent Flight Battery
      is a spare or replacement battery for Autel EVO Lite series of drones. Autel EVO Lite
      Battery boasts up to 40 minutes of flight time thanks to its 6,175mAh, 11.13v lithium
      polymer battery technology. This added flight time is about 30 percent more than the
      competition.

      Learn
      More

  • •
    • Payload Drop System

      The Autel EVO Lite+ On the Go Bundle is an accessory
      bundle that includes many essentials for Autel EVO Lite series including a shoulder bag,
      multi-charger, 2 spare batteries, 2 pairs of propellers, and a set of ND (Neural
      Density) filters. Everything you need to make the most of your new Lite+ drone.


      Learn
      More

  • •
    • Multi-charger

      The Autel EVO Max series offers a versatile
      multi-charger, designed to provide convenient and efficient charging solutions. With its
      ability to simultaneously charge the smart controller, batteries, and even mobile
      phones, the Autel EVO Max multi-charger provides a comprehensive charging solution for
      users. Its emphasis on safety, multi-device support, and efficiency make it an ideal
      accessory for EVO Max series users.

      Learn
      More

  Autel EVO Max 4T V2 Package List



• Professional Drone Technical Specifications


  Explore detailed specifications for aircraft performance, imaging systems,
  thermal capabilities, autonomy, radar systems, controller hardware, and more.

  Aircraft

  Gimbal

  Zoom Camera

  Wide Camera

  Thermal Camera

  Laser Range Finder

  Image Transmission

  Millimeter-wave Radar

  Visual Sensing

  Smart Controller

  ABX41-D Battery

  Weight	1665g (ABX41-D smart battery, Fusion 4T V2 gimbal, and propellers included)
  Dimensions	563×657×147 mm (unfolded, incl. propellers)
  Diagonal Wheelbase	467mm
  Propeller Size	11 inch, 1158
  Propeller Pitch	5.8 inch
  Propeller Material	Nylon + Carbon Fiber
  Propeller Weight	10.3 g
  Maximum Propeller Rotational Speed	7500 RPM
  Max Ascent Speed	8m/s
  Max Descent Speed	6m/s
  Max Horizontal Speed (windless near sea level)	22m/s
  Max Service Ceiling Above Sea Level	4500 meters (use ABX41-D smart battery)
  Max Flight Time	42 minutes * Test data from lab with windless environment in the speed of 8 m/s during horizonal flight and only for reference.
  Max Hovering Time (windless)	37 minutes * Test data from lab with windless environment during hovering and only for reference.
  Max Flight Distance	25 km * Test data from lab with windless environment in the speed of 14 m/s during horizonal flight and only for reference.
  Max Wind Resistance	Takeoff and Landing Phase: 10.7 m/s Cruise Phase: 12 m/s
  IP Rating	IP43
  Max Tilt Angle	Slow: 10° Smooth: 30° Standard: 30° Ludicrous: 36°
  Max Angular Velocity	Pitch: 300°/s; Yaw: 120°/s
  Operating Temperature	-20℃ to +50℃ (without load) -20℃ to +40℃ (full load)
  Operating Frequency	2.4G: 2.400–2.476GHz*，2.400–2.4835GHz 5.2G: 5.15-5.25GHz**，5.17-5.25GHz*** 5.8G: 5.725-5.829GHz*，5.725-5.850GHz * Only applies to SRRC regions ** Only applies to FCC, CE (Germany excluded) and UKCA regions *** Only applies to Germany Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations.
  Transmitter Power (EIRP)	2.4GHz:<33dBm(FCC), 20dBm(CE/SRRC/MIC) 5.8GHz:33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC) 5.25-5.35GHz:<30dBm(FCC), <23dBm(SRRC/MIC)
  Protocol	802.11a/b/g/n/ac/ax

  Gimbal Weight	215 g
  Mechanical Range	Pan: -135° to 45° Tilt: -45° to 45° Roll: -100° to 100°
  Controllable Range	-90° to 30°
  Stable system	3-axis mechanical gimbal (pitch, tilt, roll)
  Max Control Speed	Tilt: 100º/s
  Angular Vibration Range	<0.005°

  Sensor	1/2″ CMOS, Effective pixels: 48M
  Lens	Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm) Aperture: f/2.8-f/4.8
  ISO Range	Auto: ISO100 ~ ISO6400 Manual: ISO100 ~ ISO6400
  Shutter Speed	Shooting: 8s ~ 1/10000s Recording: 1/30s ~ 1/10000s
  Zoom	2.7 – 10x continuous optical zoom, 20x hybrid zoom and 160x digital zoom
  Max Photo Size	JPG: 4000×3000, 8000×6000 DNG: 4000×3000
  Still Photography Mode	Single
  Video Resolution	4000×3000@30fps
  Max Video Bitrate	60Mbps
  Video Format	MP4
  Video Subtitles	Supported
  Video Encoding	H.264/H.265
  Supported File System	exFAT/FAT32

  Sensor	1/2″ CMOS. Effective pixels: 48M
  Lens	DFOV: 83.4° Equivalent focal length: 24 mm Aperture: f/2.8 Focus: 1.5 m ~ ∞
  ISO Range	Auto/Manual: ISO100 ~ ISO6400 Night Mode: ISO100 ~ ISO320000 (auto)
  Shutter Speed	Shooting: 8s ~ 1/10000s Recording: 1/30s ~ 1/10000s
  Zoom	1 – 2.6x digital zoom
  Photo Size	JPG: 4000×3000, 8000×6000 DNG: 4000×3000
  Still Photography Mode	Single
  Video Resolution	4000×3000@30fps Night Mode: 2400×1800@30fps
  Max Video Bitrate	60Mbps
  Video Format	MP4
  Video Subtitles	Supported
  Video Encoding	H.264/H.265
  Supported File System	exFAT/FAT32

  Thermal Imager	Uncooled VOx Microbolometer
  Lens	FOV: 61° Focal length: 9.1 mm Aperture: f/1.0 Focusing distance: 2.2 m ~ ∞
  Equivalent Digital Zoom Rate	1-16x digital zoom
  Noise Equivalent Temperature Difference	≤50mK@25℃, F#1.0
  Pixel Pitch	12 um
  Spectral Band	8 – 14 um
  Temperature Measurement Method	Center Point Temperature Measurement/Spot Temperature Measurement/Area Temperature Measurement
  Temperature Measurement Accuracy	±2℃ or reading ±2% (using the larger value) @ ambient temperature ranges from -10℃ to 50℃
  Temperature Measurement Distance	1-100 m
  Temperature Alert	In area temperature measurement, high and low temperature alarm thresholds, reporting coordinates and temperature values are supported
  Palette	White Hot/Black Hot/Ironbow/Rainbow 1/Rainbow 2/Lava/Arctic/Ironbow/Medical/Tint
  Photo Size	640×512
  Still Photography Mode	Single
  Photo Format	JPG * the images contain temperature information and are parsed by dedicated SDK and PC tools.
  Video Resolution	640×512@30fps / 640×512@25fps * Due to differences in thermal imaging sensor suppliers, the two specifications are shipped in mixed batches. The exact specification is subject to the actual product purchased.
  Max Video Bitrate	10Mbps
  Video Format	MP4
  Supported File System	exFAT/FAT32

  Wavelength	905 nm
  Laser Safety	Class 1
  Measuring Accuracy	± (1 m + D*×0.15%) * Where D is the distance to a vertical reflecting plane.
  Measuring Range	5 – 1200 m

  Antenna	Dual antennas, 1T2R, detachable design
  Operating Frequency	900M: 902-928MHz* 2.4G: 2.400–2.476GHz**, 2.400–2.4835GHz 5.8G: 5.725-5.829GHz**, 5.725-5.850GHz * Only applicable to FCC and ISED regions. ** Only applicable to SRRC region. Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations.
  Effective Isotropic Radiated Power (EIRP)	900M: ≤30dBm(FCC/ISED) 2.4G: ≤30dBm(FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.8G: ≤30dBm(FCC/ISED/SRRC); ≤14dBm (CE/UKCA)
  Max Transmission Distance	FCC: 15 km SRRC/CE: 8 km * Without Interference and Blocking.

  Operating Frequency	60G: 60Ghz~64Ghz 24G: 24.0~24.25GHz Please note: US regulations require that millimeter wave radar only supports 24GHz.
  Effective Isotropic Radiated Power (EIRP)	60G: ≤20dBm (CE/UKCA/FCC) 24G: ≤20mW (SRRC)
  Sensing Range	60G millimeter-wave radar: Upward: 0.3 – 20 m Downward: 0.15 – 80 m Forward & Backward: 0.3 – 50 m 24G millimeter-wave radar: Downward: 0.8 – 12 m
  FOV	Horizontal (6dB): ±60°/±22° (60 GHz/24 GHz) Vertical (6dB): ±30°/±20° (60 GHz/24 GHz)
  Operating Environment	60 GHz millimeter-wave radar sensing system: Supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees in 4 directions. Its obstacle avoidance distance varies with the obstacle’s ability to reflect electromagnetic waves and its surface size. 24 GHz millimeter-wave radar sensing system: Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 12 meters, and the sensing range of grass with a thickness of more than 3 cm is less than 6 meters.
  Aircraft Version Limitations*	To comply with (national) regional regulations, certain aircraft versions use a 24 GHz millimeter-wave radar in the downward direction and use 60 GHz radars in the forward, backward, and upward directions. In the 24 GHz aircraft version, the 60GHz radars in the forward, backward, and upward directions are disabled in the flight software at the factory, and only the 24GHz radar in the downward direction is enabled to assist in landing. The 24 GHz aircraft version only supports visual obstacle avoidance under good lighting conditions and does not support millimeter-wave radar obstacle avoidance at night.

  Obstacle Sensing Range	Forward: 0.5 ~ 30 m Backward: 0.5 ~ 25 m Sidewards: 0.5 ~ 40 m Upward: 0.5 ~ 40 m Downward: 0.5 – 35 m
  FOV	Forward & Backward: 60°(H), 80°(V) Upward: 180° (sidewards), 120° (forward & backward) Downward: 180° (sidewards), 120° (forward & backward)
  Operating Environment	Forward, backward, sidewards, and upward: The surface has rich textures, under a sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment). Downwards: The surface has rich textures, and the surface is a diffuse material with a reflectivity >20% (walls, trees, humans, etc.), under a sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment).

  Type	TFT LCD
  Dimensions	7.9 inches
  Resolution	2048×1536
  Max Brightness	2000 nits
  Refresh Rate	60Hz
  Touch Control	Supported
  Body Material	PC+ABS
  RC Dimensions	269×189×87 mm (antennas folded, sticks and bracket included) 269×189×173 mm (antennas vertical to screen, sticks and bracket included) 269×302×87 mm (antennas unfolded, sticks and bracket included)
  RC Weight	1195 g (smart controller cover excluded) 1365 g (smart controller cover included)
  Operating Temperature	-20℃ to 40℃
  Storage Temperature	+15℃ ~ +25℃ (within a year) 0℃ ~ +30℃ (within three months) -20℃ ~ +45℃ (within a month)
  Angular Vibration Range	IP43* * Long-term use may cause failure.
  Operating System	Based on Android 11
  Pre-installed flight Application	Autel Enterprise
  Application Installation	Supports the installation of third-party Android applications
  Video Performance	Smooth playback of 4K@24fps H.264/H.265 videos
  Internal Storage	128GB* * Does not support microSD card extension.
  GNSS	GPS + Galileo + BDS + GLONASS
  HDMI	Outputs up to 1080P@60fps video
  USB-C	Charging: supports PD 60W fast charging and QC 18W fast charging. Data: USB3.1 Gen2
  USB-A	Power: 5V/2A Data: USB2.0
  Protocol	802.11a/b/g/n/ac
  Operating Frequency	2.4G: 2.400–2.476GHz*, 2.400–2.4835GHz 5.8G: 5.725-5.829GHz*, 5.725-5.850GHz * Only applies to SRRC region Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations.
  Battery Replacement	Built-in, not supported
  Battery Type	Li-Po 3S
  Rated Capacity	5800 mAh
  Rated Energy	67 Wh
  Voltage	11.55V
  Charging Time	About 120 minutes* * Charging time depends on the actual remaining power.
  Battery Endurance	Max brightness: 2.5 hours 50% brightness: 4.0 hours

  Battery Weight	530 g
  Battery Dimension	158.4×74.3×50.7 mm
  Operating Temperature	-20℃ to 50℃
  Storage Temperature	-20℃ to +35℃
  Ideal Storage Environment	+22℃ to +28℃, 65±20%RH, 60% battery level
  Battery Type	Li-Po 4S
  Rated Capacity	9248mAh
  Rated Energy	136.5Wh
  Voltage	DC 14.76V
  Charging Voltage Limit	DC 17.0V
  Rated Charging Power	120W
  Max Charging Power	282W
  Battery Charge Temperature	+5℃ to +45℃* * When the battery temperature is below +5℃, the battery stops charging and activates self-heating. When the battery temperature is above +45℃, the battery stops charging.
  Service life	200 discharge cycles* * If the number of discharge cycles exceeds 200, the battery should be replaced with a new one.

• Autel EVO Max 4T V2 Package List



• Name	Download
  EVO Max 4T V2 Brochure – EN.pdf
  EVO Max 4T V2 Quick Guide.pdf
  EVO Max 4T V2 Battery Safe Operation Guidelines.pdf
  EVO Max 4T V2 Disclaimrand Safety Operation Guidelines .pdf
