Autel Robotics EVO Max 4N Gimbal Camera
$4,619.40
180 in stock

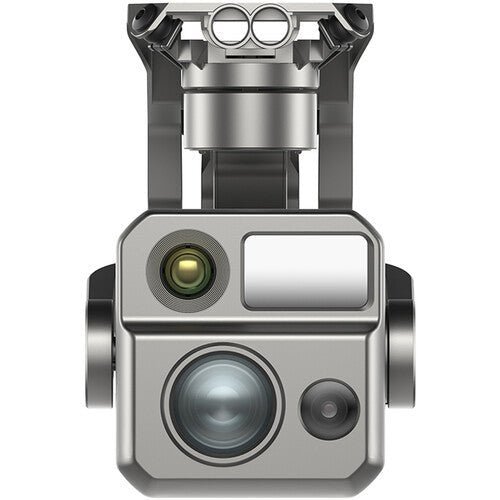

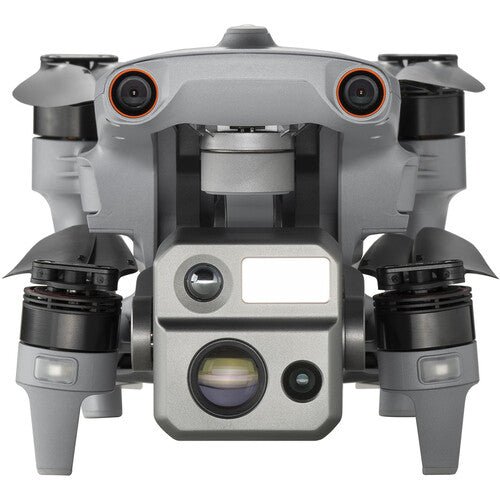

The Autel Robotics EVO Max 4N Gimbal is the replacement camera and gimbal assembly for the Autel EVO Max 4N. Explore the night with the EVO Max 4N, equipped with starlight night vision, zoom and thermal cameras, as well as full laser ranging capabilities. The exceptional starlight camera can operate in lighting conditions as low as 0.0001 Lux, bringing unparalleled performance in the dark. Night surveys, emergency responses, and more – all possible with the EVO Max 4N.
Mission Ready Payload
The EVO Max 4N payload integrates starlight camera, wide camera, zoom camera, thermal camera, and a laser rangefinder for all data capture needs and critical decision making.
- Starlight Camera: With an impressive 0.0001 LUX and ISO ranges from 100-450,000 it has the ability to lock and track targets at night. This camera is the ultimate tool to explore the night.
- Thermal Camera: Equipped with 640 x 512 high-resolution thermal imaging camera, 30fps, and 16x digital zoom.
- Laser Rangefinder: Tap a target to get the coordinates and distance rapidly from up to 0.75 miles away.
- Wide Camera: Moonlight Algorithm 2.0 boosts post processing and allows the pilot to capture crisp, detailed images in low-light environments.
- Video: Supports 4K 30fps, max ISO 64000.
- Photo: Moonlight mode reduces noise and enhances HDR
In the Box
1 – Autel EVO Max 4N Camera and Gimbal Assembly
Specifications
STARLIGHT CAMERA
| Sensor | Effective Pixels: 2.3M |
| Lens | Focal Length: 35mm (equivalent 41.4mm) FOV：52° Zoom Range: 1-8x, supports linkage zoom |
| ISO Range | Auto: ISO100-ISO450000 Super Sensitive Mode: Auto ISO100-ISO450000 |
| Camera Modes | Single shot (default), long press for continuous shots |
| Photo Format | JPG |
| Photo Resolution | 1920×1200 |
| Video Format | MP4 |
| Video Resolution | 20Mbps (1920×1200 P30) |
| HDR Video | Auto |
| Video Output | Super Sensitive Mode: 1920×1200 P30 |
THERMAL CAMERA
| Sensor | Uncooled VOx Microbolometer |
| Lens | FOV：61° Focal length: 9.1mm Aperture: f/1.0 Focusing Distance: 2.2m ~ ∞ |
| Infrared Temperature Measurement Accuracy | ±3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃-60℃) |
| Video Resolution | 640×512@30FPS |
| Photo Size | 640×512 |
| Pixel Pitch | 12um |
| Temperature Measurement Method | Center measurement, pot measurement, rectangular measurement |
| Temperature Measurement Range | -4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C) |
| Temperature Alert | High and low temperature alarm thresholds, reporting coordinates and temperature values |
| Palette | White Hot/Black Hot/Searing/Rainbow/Grey/Ironbow/Cold and Hot |
WIDE CAMERA
Sensor: 1/1.28 CMOS, Effective pixels: 50M
Lens:
- FOV: 85°
- Focal length: 4.5 mm (equivalent: 23 mm)
- Aperture: f/1.9
- AF motor: PDAF focus
Exposure Compensation: ±3EV 0.3EV/step
ISO Range:
- Auto:
- Photo: ISO100~ISO6400
- Video: ISO100~ISO64000 (Night scene mode: up to ISO64000)
- Manual:
- Photo: ISO100~ISO12800
- Video: ISO100~ISO6400
Shutter Speed:
- Photo: 8s ~ 1/8000s
- Video: 1s ~ 1/8000s
Max. Video Resolution: 3840×2160
Photo Size: 4096*3072
LASER RANGEFINDER
| Measurement Accuracy | ± (1 m + D×0.15%) D is the distance to a vertical surface |
| Measuring Range | 5m to 1.2km |
